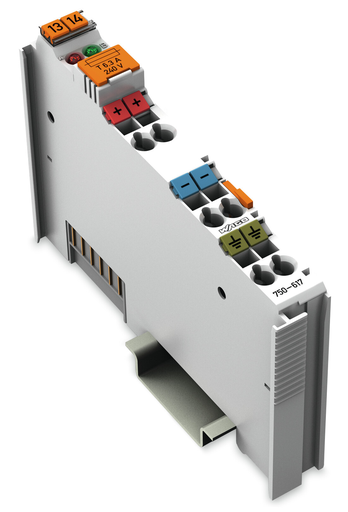

Features

Approvals

• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• National Radio Research Agency, KC, MSIP-REM-W43-SPP750, Article 58-2, Clause 3

Specifications

Technical Data

• Signal type: Voltage
• Voltage signal type: 24 VAC
• Fuse: 5 x 20; T 6.3 A (not included)
• Supply voltage (system): 5 VDC; via data contacts
• Supply voltage (field): 24 VAC; via power jumper contacts (power supply via CAGE CLAMP® connection; transmission via spring contact)
• Number of outgoing power jumper contacts: 3
• Current carrying capacity (power jumper contacts): 6.3 A

Connection Data

• Connection technology: field supply: 6 x CAGE CLAMP®
• Connection type (1): Field supply
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

• Width: 12 mm / 0.472 inch
• Height: 100 mm / 3.937 inch
• Depth: 69.8 mm / 2.748 inch
• Depth from upper edge of DIN-rail: 62.6 mm / 2.465 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 0.991 MJ
• Weight: 50.000 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: Per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-4
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821215233
• Customs tariff number Sales Organisation Germany: 85389091890
