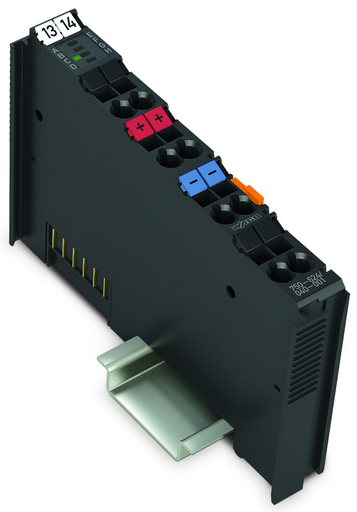

Features

• Extended temperature range
• Greater immunity to impulse voltages and electromagnetic interference
• Higher vibration and shock resistance

Approvals

• TUEV Nord Cert GmbH, ATEX, TUEV 17 ATEX 193969X, EN 60079-0
• TUEV Nord Cert GmbH, IECEx, IECEx TUN 16.0046X, IEC 60079-0
• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• American Bureau of Shipping, ABS, 18-HG1778162-PDA
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
• CQST/CNEx, CCCEx, 2020312310000214, CNCA-C23-01
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00000Y7
• National Radio Research Agency, KC, MSIP-REM-W43-FTM750, Article 58-2, Clause 3
• Lloyds Register, LR, 17/20073 LR
• Polski Rejestr Statków, PRS, TE/2215/880590/18

Specifications

Technical Data

• Signal type: Voltage
• Voltage signal type: 24 VDC
• Supply voltage (system): 5 VDC; via data contacts
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via CAGE CLAMP® connection; transmission via spring contact); Derating must be observed!
• Rated surge voltage: 1 kV
• Number of outgoing power jumper contacts: 2
• Current carrying capacity (power jumper contacts): 10 A
• Derating: Derating (supply voltage): Surrounding air temperatures under laboratory conditions: (-25 … +30 %); for -40 … +55 °C: 24 V (-25 … +20 %); for +55 … +70 °C: 24 V (-25 … +10 %); Lower limit in all temperature ranges: −27.5 % (including 15 % residual ripple)

Connection Data

• Connection technology: field supply: 4 x CAGE CLAMP®
• Connection type (1): Field supply
• Solid conductor: 0.25 … 2.5 mm² / 24 … 14 AWG
• Fine-stranded conductor: 0.25 … 2.5 mm² / 24 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

• Width: 12 mm / 0.472 inch
• Height: 100 mm / 3.937 inch
• Depth: 67.8 mm / 2.669 inch
• Depth from upper edge of DIN-rail: 60.6 mm / 2.386 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Dark gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 0.147 MJ
• Weight: 47.800 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): -40 … 70 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Relative humidity (with condensation): Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
• Vibration resistance: Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373
• Shock resistance: Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373
• EMC immunity to interference: Per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26; EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994
• EMC emission of interference: Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821460176
• Customs tariff number Sales Organisation Germany: 85389091890
