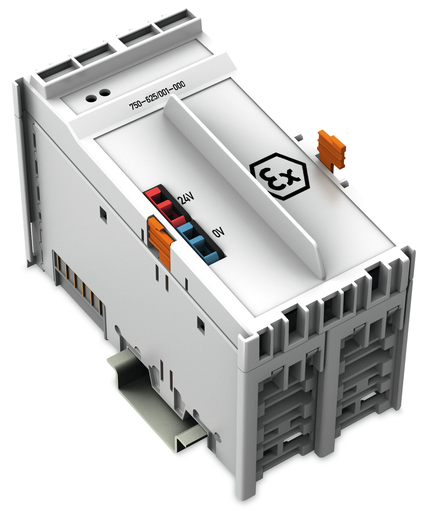

Features

• Indicators:Green LED (input voltage)
• Green/red LED (output voltage available/not available)

Approvals

• American Bureau of Shipping, ABS, 19-HG1821926
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• Underwriters Laboratories Inc., UL, E175199 Sec10, UL 61010-2-201
• Nippon Kaiji Kyokai, NK, TA17255M
• National Radio Research Agency, KC, MSIP-REM-W43-SPP750, Article 58-2, Clause 3
• Lloyds Register EMEA, LR, 02/20026 (E6)
• RINA Germany GmbH, RINA, ELE066419XG
• CQST/CNEx, CCCEx, 2020312310000211, CNCA-C23-01
• Korean Register of Shipping, KR, KR HMB05880-AC001
• UL International Germany GmbH, AEx, E480271, UL 60079
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
• TUEV Nord Cert GmbH, ATEX, TUEV_12_ATEX_106032X, EN 60079-0
• TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0
• TÜV Rheinland do Brasil Ltda., INMETRO, TÜV_14.1911_X
• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• Polski Rejestr Statków, PRS, TE/2236/880590/19
• Bureau Veritas S.A., BV, 30389/B0 BV
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011

Specifications

Notes

• Note: General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 manuals!

Technical Data

• Input voltage (note): 24 VDC (−25 % … +30 %)
• Fuse: Electronic
• Power consumption Pmax.: 29 W
• Intrinsic safety Ex i: Yes
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 7.5 mA
• Supply voltage (field): 24 VDC (-25 … +30 %); (Adjacent Ex i modules are supplied with UO = max. 27.3 V); via power jumper contacts (power supply via CAGE CLAMP® connection; transmission via spring contact)
• Power loss Pl: < 5 W
• Number of outgoing power jumper contacts: 2
• Current carrying capacity (power jumper contacts): 1 A
• Marking: ATEX/IECEx: II 3G Ex ec IIC T4 Gc

Explosion Protection

• Ex guideline: EN IEC 60079-0, -7, -11
• Power supply (output): Uo = 26.8 V (Safe voltage acc. to IEC 60079-11, protection level ia); Un = 24 V ± 0.3 V, In = 1 A
• Power supply (input): Un = 24 VDC (−25 % … +30 %); Pmax. = 29 W; Um = 253 V

Connection Data

• Connection technology: field supply: 2 x CAGE CLAMP®
• Connection type (1): Field supply
• Solid conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch
• Note (conductor cross-section): 14 AWG: THHN, THWN

Physical Data

• Width: 48 mm / 1.89 inch
• Height: 100 mm / 3.937 inch
• Depth: 70.9 mm / 2.791 inch
• Depth from upper edge of DIN-rail: 63.7 mm / 2.508 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 2.506 MJ
• Weight: 167.000 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: 4g per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2, marine applications
• EMC emission of interference: Per EN 61000-6-3, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454971564
• Customs tariff number Sales Organisation Germany: 85389091890
