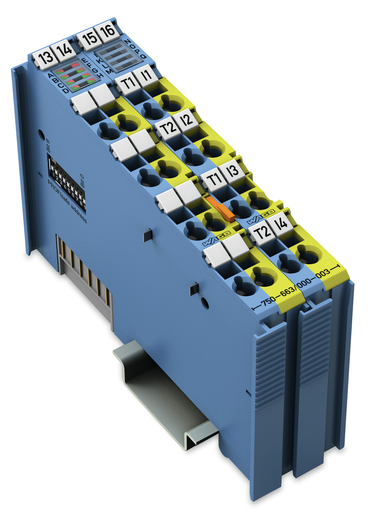

Features

Approvals

• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• Lloyds Register EMEA, LR, 02/20026 (E6)
• UL International Germany GmbH, AEx, E480271, UL 60079
• RINA Germany GmbH, RINA, ELE066419XG
• TUEV Nord Cert GmbH, TUEV Nord, IECEx TUN 12.0039X, IEC 60079
• American Bureau of Shipping, ABS, 19-HG1821926
• National Radio Research Agency, KC, MSIP-REM-W43-DIM750, Article 58-2, Clause 3
• CQST/CNEx, CCCEx, 2020312310000211, CNCA-C23-01
• TÜV Rheinland do Brasil Ltda., INMETRO, TÜV_14.1911_X
• Polski Rejestr Statków, PRS, TE/2236/880590/19
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
• TUEV Rheinland Industrie Service GmbH, TUEV Rheinland, No. 968/EZ 247.14/16
• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
• TUEV Nord Cert GmbH, ATEX, TUEV_12_ATEX_106032X, EN 60079-0

Specifications

Technical Data

• Number of digital inputs: 4
• Total number of channels (module): 4
• Signal type: Voltage
• Voltage signal type: 24 VDC
• Sensor connection: 4 x (Fail-safe input with test pulse)
• Input characteristic: Clock sensitive || Type 1
• Input filter (digital): 0.5 ms || 1 ms || 2 ms || 3 ms || 5 ms || 10 ms || 20 ms || 50 ms || 100 ms || 200 ms || 0 ms
• Input filter: 0 … 200 ms (parameterizable in steps)
• Input filter: parametrizable (channel by channel): Yes
• Input current per channel for signal (1) (typ.): 3 mA
• Output current per channel: 0.05 A
• Short-circuit current: ≤ 25 mA
• Signal frequency (max.): 50 Hz
• Intrinsic safety Ex i: Yes
• Configuration options: PROFIsafe address adjustable via DIP switch or engineering software
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 145 mA
• Supply voltage (field): 24 VDC; (Ex i power supply: UO = max. 27.3 V); via power jumper contacts (power supply via blade contact; transmission via spring contact)
• Power consumption, field supply (module with no external load): 20 mA
• Isolation: 300 VAC system/field
• Indicators: LED (A-D) green/red: Status/Error I1 … I4; LED (E) red: Group error; LED (F-H) green/red: Diagnostics
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Current carrying capacity (power jumper contacts): 1 A
• Marking: ATEX/IECEx: II 3 (1) G Ex ec [ia Ga] IIC T4 Gc; II (1) D [Ex ia Da] IIIC; I (M1) [Ex ia Ma] I

Functional Safety

• Achievable risk reduction: SIL 3 per IEC 61508; SIL 3 per IEC 61511; SIL 3 per IEC 62061; Cat. 4, PL e per EN ISO 13849
• Safety standards: IEC 61508; IEC 62061; EN ISO 13849; IEC 61511

Explosion Protection

• Ex guideline: EN IEC 60079-0, -7, -11
• Safety-relevant data (circuit): Uo = 27.3 V; Io = 23 mA; Po = 157 mW; Characteristic: Linear
• Reactances Ex ia IIC: Lo = 61 mH; Co = 64 nF
• Reactances Ex ia IIB: Lo = 100 mH; Co = 552 nF
• Reactances Ex ia IIA: Lo = 100 mH; Co = 2,28 µF
• Reactances Ex ia I: Lo = 100 mH; Co = 2.95 µF
• Reactances (note): (The above-listed ratings do not account for the coincidental occurrence of capacitances and inductances. For ratings taking the coincidental occurrence of capacitances and inductances into account, see manual)

Connection Data

• Connection technology: inputs/outputs: 8 x CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Connection requirement, permissible cable length: 100 m

Physical Data

• Width: 24 mm / 0.945 inch
• Height: 100 mm / 3.937 inch
• Depth: 67.8 mm / 2.669 inch
• Depth from upper edge of DIN-rail: 60.6 mm / 2.386 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Multicoloured
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 1.685 MJ
• Weight: 91.988 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -25 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: 4g per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2, marine applications
• EMC emission of interference: Per EN 61000-6-3, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821531432
• Customs tariff number Sales Organisation Germany: 85389099990
