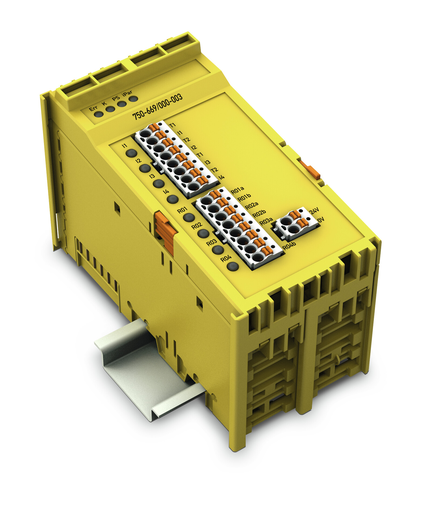

Features

Approvals

• CQST/CNEx, CCCEx, 2020312310000213, CNCA-C23-01
• TUEV Nord Cert GmbH, IECEx, IECEx_TUN_14.0035_X, IEC 60079
• TUEV Nord Cert GmbH, ATEX, TUEV_14_ATEX_148929_X, EN 60079
• TUEV Rheinland Industrie Service GmbH, TUEV Rheinland, No. 968/EZ 247.14/16
• National Radio Research Agency, KC, MSIP-REM-W43-DI0750, Article 58-2, Clause 3
• Underwriters Laboratories Inc., UL, E175199 Sec10, UL 61010-2-201
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201

Specifications

Technical Data

• Number of digital inputs: 4
• Number of digital outputs: 4
• Total number of channels (module): 8
• Signal type: Voltage
• Voltage signal type: 48 VAC
• Sensor connection: 4 x (Fail-safe input with test pulse)
• Actuator connection: 4 x (Fail-safe output with test pulse)
• Input characteristic: Clock sensitive || Type 1
• Input current per channel for signal (1) (typ.): 2.2 mA
• Output circuit design: Relay outputs
• Output current per channel: 6 A
• Output current (module): 24 A
• Signal frequency (max.): 50 Hz
• Switching delay: 50 ms
• Switching current (note): Switching current range compatible with the WAGO 75x-66x/000-003 PROFIsafe I/O Module
• Switching voltage range: 5 … 60 VDC (SELV/PELV); 5 … 48 VAC
• Switching current (min.): 3 mA
• Configuration options: PROFIsafe address adjustable via DIP switch or engineering software
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 145 mA
• Supply voltage (system and sensor): 24 VDC(-25 … +30 %)
• Supply voltage (field): 24 VDC; via pluggable connector (Push-in CAGE CLAMP®connection)
• Power consumption, field supply (module with no external load): 50 mA
• Isolation: 500 V system/field
• Isolation voltage: Relay outputs: 48 VAC, 60 VDC
• Indicators: LED green/red: Status/Error I1 … I4, RO1 … RO4; LED red (Err): Group error; LED green/red (K, PS): Diagnostics; LED red (iPar): Parameterization

Functional Safety

• Achievable safety classes: SIL 3; Category 4, PL e
• Safety standards: IEC 61508-1 … -7; EN ISO 13849-1; EN 62061

Connection Data

• Connection technology: inputs/outputs: 16 x Push-in CAGE CLAMP®
• Connection technology: field supply: 2 x Push-in CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Solid conductor: 0.5 … 1.5 mm² / 20 … 14 AWG
• Fine-stranded conductor: 0.5 … 1.5 mm² / 20 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Connection type 2: Field supply

Physical Data

• Width: 48 mm / 1.89 inch
• Height: 100 mm / 3.937 inch
• Depth: 69.8 mm / 2.748 inch
• Depth from upper edge of DIN-rail: 62.6 mm / 2.465 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Yellow
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 0.828 MJ
• Weight: 220.300 g

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -25 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: Per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2; EN 61326-3-1
• EMC emission of interference: Per EN 61000-6-4
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143535588
• Customs tariff number Sales Organisation Germany: 85389099990
