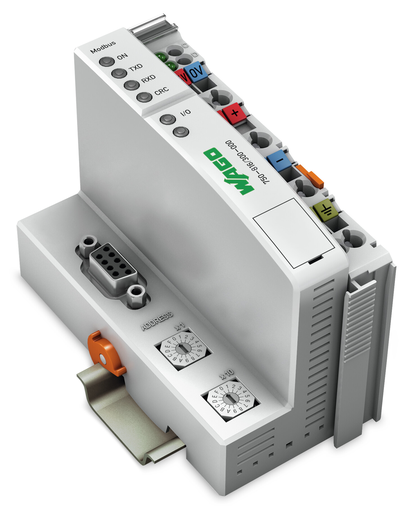

Decentralized control to optimize support for a PLC or PC
Devide complex applications into individually testable units
Programmable fault response in the event of fieldbus failure
Signal pre-processing to reduce fieldbus transmissions
Directly control peripheral equipment for faster system response times
Stand-alone, compact controller
Approvals
CQST/CNEx, CCCEx, 2020312310000215, CNCA-C23-01
TUEV Nord Cert GmbH, TUEV Nord, TÜV 07 ATEX 554086 X en., EN 60079-0
Bureau Veritas S.A., BV, 13453/DO BV
Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0
UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
RINA Germany GmbH, RINA, ELE066419XG
National Radio Research Agency, KC, MSIP-REM-W43-PFC750, Article 58-2, Clause 3
Nippon Kaiji Kyokai, NK, TA17255M
Specifications
Technical Data
Communication: Modbus® RTU
Visualization: Without
CPU: 16 bits
Programming languages per IEC 61131-3: Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)
Programming environment: WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
Cycle time: < 3 ms for 1000 bit instructions/ 256 digital I/O
Baud rate: 150 Baud … 115.2 kBd
Bus segment length (max.): 1200 m
Transmission medium (communication/fieldbus): Shielded Cu cable 2 (4) x 0.25 mm²
Number of fieldbus nodes on master (max.): 247
Number of I/O points: 6000
Program memory: 32 kByte
Data memory: 32 kByte
Non-volatile software memory: 8 kB
Memory for fieldbus input variables (max.): 512 Byte
Memory for fieldbus output variables (max.): 512 Byte
Number of modules per node (max.): 64
Input and output (fieldbus) process image (max.): 1024 Byte/1024 Byte
Indicators: LED (ON, LINK, TxD/RxD) green: Fieldbus initialization, send, receive; LED (CRC) red: Checksum error; LED (I/O) red/green/orange: Local data bus status; LED (A, B) green: System power supply status, field supply
Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)
Input current (typ.) at nominal load (24 V): 500 mA
Power supply efficiency (typ.) at nominal load (24 V): 87 %
Power consumption (5 V system supply): 350 mA
Total current (system supply): 1650 mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts
Current carrying capacity (power jumper contacts): 10 A
Number of outgoing power jumper contacts: 3
Isolation: 500 V system/field
Connection Data
Connection technology: communication/fieldbus: Modbus RTU: 1 x D-sub 9 socket
Connection technology: system supply: 2 x CAGE CLAMP®
Connection technology: field supply: 6 x CAGE CLAMP®
