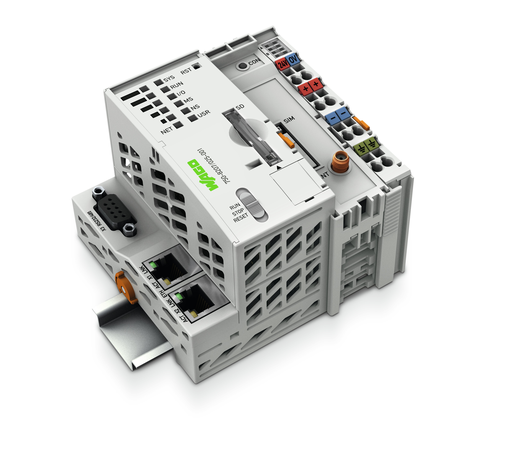

Features

• Programmable via WAGO-I/O-PRO V2.3
• Direct connection of WAGO I/O modules
• 2 x ETHERNET (configurable), RS-232/485
• Linux operating system with RT‐Preempt patch
• Configuration via CODESYS or Web-Based Management interface
• Maintenance-free

Approvals

• KEMA Nederland B.V., DNV GL, 10035055-INC 17-1995
• National Radio Research Agency, KC, MSIP-REM-W43-PFC750, Article 58-2, Clause 3
• TUEV Nord Cert GmbH, IECEx, IECEx_TUN_14.0035_X, IEC 60079
• DNV GL Netherlands B.V., IEC, 10035055-INC 17-1995, IEC 60870-5-104 ed.2 Client
• Underwriters Laboratories Inc., UL, E175199 Sec10, UL 61010-2-201
• CQST/CNEx, CCCEx, 2020312310000213, CNCA-C23-01
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• TUEV Nord Cert GmbH, ATEX, TUEV_14_ATEX_148929_X, EN 60079
• DNV GL Netherlands B.V., IEC, 10017175-OPE/INC 16-2021, IEC 60870-5-104 ed.2 Server

Specifications

Technical Data

• Communication: Modbus (TCP, UDP) || ETHERNET || Modbus® RTU || RS-232 serial interface || RS-485 serial interface || Telecontrol protocols || MQTT
• ETHERNET protocols: DHCP || DNS || NTP || FTP || FTPS || SNMP || HTTP || HTTPS || SSH
• Telecontrol protocols: IEC 60870-5-101/-103/-104 || IEC 61400-25 || IEC 61850-7 || DNP3
• Visualization: Web Visu
• Operating system: Real-time Linux (with RT-Preempt patch)
• CPU: Cortex A8; 600 MHz
• Programming languages per IEC 61131-3: Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)
• Programming environment: WAGO-I/O-PRO V2.3 (based on CODESYS V2.3) || e!COCKPIT (based on CODESYS V3)
• Configuration options: e!COCKPIT || WAGO-I/O-CHECK || Web-Based Management || e!RUNTIME Library || CODESYS Library
• Security encryption: OpenVPN, IPsec, firewall
• Services: SMS (bidirectional) || GPRS connection to Internet
• Radio technology: GSM/Edge/UMTS/HSPA+
• Frequency band: GSM quad-band
• Baud rate (communication/fieldbus 1): 10/100 Mbit/s
• Baud rate: ETHERNET: 10/100 Mbit/s
• Transmission medium (communication/fieldbus): ETHERNET: Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
• Main memory (RAM): 256 MB
• Internal memory (flash): 256 MB
• Non-volatile hardware memory: 128 kB
• Program memory: 16 MB
• Data memory: 64 MB
• Non-volatile software memory: 128 kB
• Memory card type: SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO 758-879/000-001 Memory Card)
• Memory card slot: Push-push mechanism; Cover lid (sealable)
• SIM card type: Mini-SIM
• SIM card slot: Push-push mechanism
• Number of modules per node (max.): 250
• Number of modules without a bus extension (max.): 64
• Input and output (internal) process image (max.): 1000 Worte/1000 Worte
• Input and output (MODBUS) process image (max.): CODESYS V2: 1000 Worte/1000 Worte
• Indicators: LED (SYS, RUN, I/O, USR, S1–S5, NET) red/green/orange: System status, program, local data bus, status programmable by user (can be used via CODESYS library); signal strength S1–S5, network status; LED (CON, A, B) green: Mobile network status, system power supply status, field supply status
• Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)
• Input current (typ.) at nominal load (24 V): 550 mA
• Total current (system supply): 700 mA
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts
• Current carrying capacity (power jumper contacts): 10 A
• Number of outgoing power jumper contacts: 3
• Isolation: 500 V system/field

Connection Data

• Connection technology: communication/fieldbus: Modbus TCP/UDP: 2 x RJ-45; Modbus RTU: 1 x D-sub 9 socket; RS-232 serial interface: 1 x D-sub 9 socket; RS-485 serial interface: 1 x D-sub 9 socket; Telecontrol protocol IEC 60870-5-101/-103: 1 x D-sub 9 socket; Telecontrol protocol IEC 60870-5-104: 1 x RJ-45; Telecontrol protocol IEC 61850: 1 x RJ-45; Telecontrol protocol DNP3: 1 x RJ-45 or D-sub 9 socket
• Connection technology: system supply: 2 x CAGE CLAMP®
• Connection technology: field supply: 6 x CAGE CLAMP®
• Connection type (1): System/field supply
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Connection technology: antenna: 1 x SMA socket
• Connection technology: device configuration: 1 x Male connector; 4-pole

Physical Data

• Width: 102.5 mm / 4.035 inch
• Height: 100 mm / 3.937 inch
• Depth: 71.9 mm / 2.831 inch
• Depth from upper edge of DIN-rail: 64.7 mm / 2.547 inch

Mechanical Data

• Weight: 257.434 g
• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): -20 … 60 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
• Relative humidity (without condensation): 95 %
• Relative humidity (with condensation): Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E-DIN 40046-721-3, accounting for a temperature range of −20 to +60 °C (except for wind-driven precipitation, water and ice formation)
• Mounting position: Any
• Mounting type: DIN-35 rail
• Vibration resistance: Per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2, marine applications
• EMC emission of interference: Per EN 61000-6-3, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Fire load: 3.655 MJ
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055144121742
• Customs tariff number Sales Organisation Germany: 85371091990
