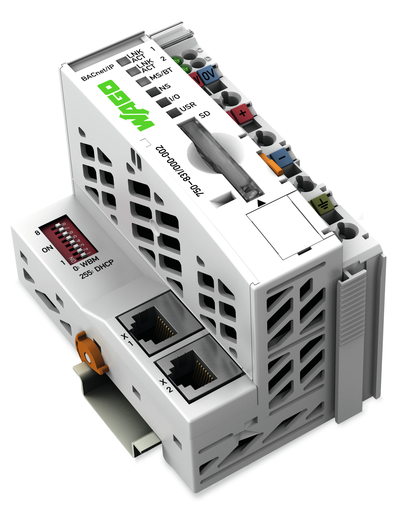

Features

• 1. Native server: For each channel, appropriate BACnet objects are generated automatically for the digital and analog I/O modules that are connected to the controller.
• 2. Application server: Other supported BACnet objects can be created via IEC 61131‐3 programming environment and made available to a BACnet network.
• 3. Application client: Using the client functionality, objects and their properties can be accessed by other BACnet devices.

Approvals

• WSP Cert, BACnet, BACnet Linsting Information BTL-30024
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• Underwriters Laboratories Inc., UL, E175199 Sec.1, UL 508
• National Radio Research Agency, KC, MSIP-REM-W43-PFC750, Article 58-2, Clause 3

Specifications

Notes

• Note: The WAGO BACnet Configurator can be downloaded for free at www.wago.com.

Technical Data

• Communication: BACnet/IP || Modbus (TCP, UDP) || ETHERNET
• ETHERNET protocols: HTTP || BootP || DHCP || DNS || SNTP || FTP || SNMP
• Visualization: Web Visu
• CPU: 32 bits
• Programming languages per IEC 61131-3: Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)
• Programming environment: WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
• Configuration options: WAGO-I/O-CHECK || BACnet Configurator || Web-Based Management
• Baud rate (communication/fieldbus 1): 10/100 Mbit/s
• Baud rate: 10/100 Mbit/s
• Transmission medium (communication/fieldbus): Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
• Transmission performance: Class D per EN 50173
• Internal memory (flash): 4.5 MB
• Program memory: 1024 kByte
• Data memory: 1024 kByte
• Non-volatile software memory: 28 kB
• Memory card type: SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO 758-879/000-001 Memory Card)
• Memory card slot: Push-push mechanism; Cover lid (sealable)
• Number of modules per node (max.): 99
• Number of modules without a bus extension (max.): 64
• Input and output (fieldbus) process image (max.): 1020 Worte/1020 Worte
• Device-specific: BACnet device profile: B-BC (BACnet building controller); BACnet revision: 1.7
• Indicators: LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS/BT, NS) red/green: Status of node/BACnet, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: Status of system power supply, field supply
• Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)
• Input current (typ.) at nominal load (24 V): 500 mA
• Power supply efficiency (typ.) at nominal load (24 V): 90 %
• Power consumption (5 V system supply): 450 mA
• Total current (system supply): 1700 mA
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts
• Current carrying capacity (power jumper contacts): 10 A
• Number of outgoing power jumper contacts: 3
• Isolation: 500 V system/field

Connection Data

• Connection technology: communication/fieldbus: BACnet/IP: 2 x RJ-45; Modbus TCP/UDP: 2 x RJ-45
• Connection technology: system supply: 2 x CAGE CLAMP®
• Connection technology: field supply: 6 x CAGE CLAMP®
• Connection type (1): System/field supply
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Connection technology: device configuration: 1 x Male connector; 4-pole

Physical Data

• Width: 61.5 mm / 2.421 inch
• Height: 71.9 mm / 2.831 inch
• Height from upper-edge of DIN-rail: 64.7 mm / 2.547 inch
• Depth: 100 mm / 3.937 inch

Mechanical Data

• Weight: 161.812 g
• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
• Relative humidity (without condensation): 95 %
• Mounting position: Any
• Mounting type: DIN-35 rail
• Vibration resistance: Per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-3
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Fire load: 3.445 MJ
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143408417
• Customs tariff number Sales Organisation Germany: 85176200000
