Features

Approvals

• Underwriters Laboratories Inc., UL, E345416, UL 1977

Specifications

Technical Data

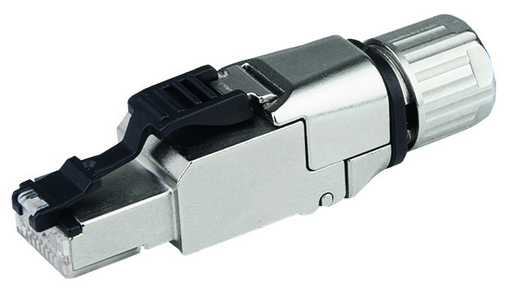

• Connection type: RJ-45 plug
• Pole No.: 8
• Cable connection direction to mating direction: 0 °
• Communication/fieldbus: Ethernet
• Code: TIA-568B

Connection Data

• Connection type (1): IDC contact
• Solid conductor: 0.21 … 0.32 mm² / 24/1 … 22/1 AWG
• Stranded conductor 2: 0.11 … 0.36 mm² / 27/7 … 22/7 AWG

Physical Data

• Width: 13.9 mm
• Height: 16.3 mm
• Depth: 56.6 mm

Mechanical Data

• Connection requirement (permissible cable type): Cat. 6A
• Connectable sheathed cable diameter: 5.5 … 10 mm
• Housing material: Zinc die casting
• Weight: 22.000 g

Environmental Requirements

• Surrounding air temperature (operation): -40 … 85 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Relative humidity (without condensation): 95 %
• Fire load: 0.000 MJ
• Standards/Specifications: IEC60603-7-51, ISO/IEC 11801, IEEE 802.3an || EIA/TIA 568-C.2 || DIN EN 50173-1 || UL 1863 || UL 2043

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: TW
• GTIN: 4055143586245
• Customs tariff number Sales Organisation Germany: 85366990990
