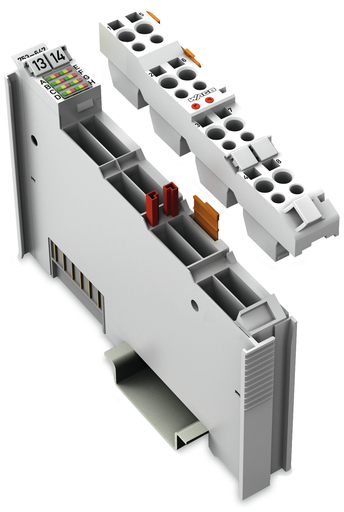

Features

Approvals

• National Radio Research Agency, KC, MSIP-REM-W43-MSM750, Article 58-2, Clause 3
• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• Polski Rejestr Statków, PRS, TE/2236/880590/19
• American Bureau of Shipping, ABS, 19-HG1821926
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
• Digital Illumination Interface Alliance (DiiA), DALI2, DALI_2_ID2036
• Lloyds Register EMEA, LR, 02/20026 (E6)
• RINA Germany GmbH, RINA, ELE066419XG

Specifications

Notes

• Note: The 753 Series Plug is included with delivery.

Technical Data

• Device specification: DALI-2 Specification: DIN IEC 62386 only in conjunction with 753-620 or 787-1007 Power Supplies
• Device-specific: Power consumption from DALI bus with alternative supply via DALI bus: 10 mA
• Topology: Number of control gears/control devices (DALI): 64 control gears + 64 control devices (addressable)
• Transmission channel: 1
• Data width: 24-byte data
• Guaranteed supply current: 200 mA
• Supply current (max.): 250 mA
• Power supply: DALI: 18 V (external)
• Commissioning: Via WAGO-I/O-CHECK
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 85 mA
• Isolation: 2100 VDC DALI bus/local bus

Connection Data

• Connection technology: inputs/outputs: 8 x CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 12 mm / 0.472 inch
• Height: 100 mm / 3.937 inch
• Depth: 69 mm / 2.717 inch
• Depth from upper edge of DIN-rail: 61.8 mm / 2.433 inch

Mechanical Data

• Mounting type: DIN-35 rail
• Wiring interface: Pluggable

Material Data

• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 0.962 MJ
• Weight: 61.400 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -25 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: 4g per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2*, *only in connection with 753-620 DC/DC Converter or 787-1007 Power Supply
• EMC emission of interference: Per EN 61000-6-3*, *only in connection with 753-620 DC/DC Converter or 787-1007 Power Supply
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821475712
• Customs tariff number Sales Organisation Germany: 85389099990
