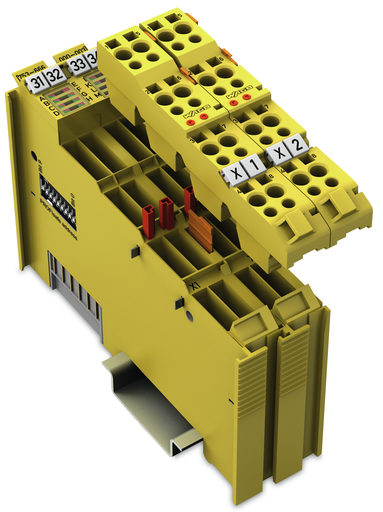

Features

Approvals

• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0
• National Radio Research Agency, KC, MSIP-REM-W43-DOM750, Article 58-2, Clause 3
• RINA Germany GmbH, RINA, ELE066419XG
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
• CQST/CNEx, CCCEx, 2020312310000215, CNCA-C23-01
• TUEV Rheinland Industrie Service GmbH, TUEV Rheinland, No. 968/EZ 247.14/16
• TUEV Nord Cert GmbH, TUEV Nord, TÜV 07 ATEX 554086 X en., EN 60079-0

Specifications

Notes

• Note: Pluggable connectors and coding fingers (753 Series) are not included.

Technical Data

• Number of digital inputs: 4
• Number of digital outputs: 2
• Total number of channels (module): 6
• Signal type: Voltage
• Voltage signal type: 24 VDC
• Sensor connection: 4 x (Fail-safe input with test pulse)
• Actuator connection: 2 x (Fail-safe output with test pulse)
• Input characteristic: Clock sensitive || Type 1
• Input current per channel for signal (1) (typ.): 2.2 mA
• Output circuit design: Power outputs
• Output current per channel: 10 A
• Output current (module): 20 A
• Output current: Short-circuit-protected
• Switching frequency (max.): 50 Hz; Resistive load
• Switching frequency (max.) (2): 0.1 Hz; Inductive load
• Signal frequency (max.): 50 Hz
• Load type of switching frequency: Resistive load
• Configuration options: PROFIsafe address adjustable via DIP switch or engineering software
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 190 mA
• Supply voltage (field): 24 VDC (-15 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
• Power consumption, field supply (module with no external load): 30 mA
• Isolation: 500 V system/field
• Indicators: LED (A-D) green/red: Status/Error I1 … I4; LED (I-K) green/red: Status/error O1 … O2; LED (E) red: Group error; LED (F-H) green/red: Diagnostics
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Current carrying capacity (power jumper contacts): 10 A

Functional Safety

• Achievable safety classes: SIL 3; Category 4, PL e
• Safety standards: IEC 61508-1 … -7; EN ISO 13849-1; EN 62061
• Test pulse duration (max.): 500 ms
• Test pulse duration (min.): 0 ms

Connection Data

• Connection technology: inputs/outputs: 16 x CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 24 mm / 0.945 inch
• Height: 100 mm / 3.937 inch
• Depth: 69 mm / 2.717 inch
• Depth from upper edge of DIN-rail: 61.8 mm / 2.433 inch

Mechanical Data

• Mounting type: DIN-35 rail
• Wiring interface: Pluggable

Material Data

• Color: Yellow
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 1.493 MJ
• Weight: 96.100 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -25 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: 4g per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2, marine applications
• EMC emission of interference: Per EN 61000-6-4, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821255482
• Customs tariff number Sales Organisation Germany: 85389099990
