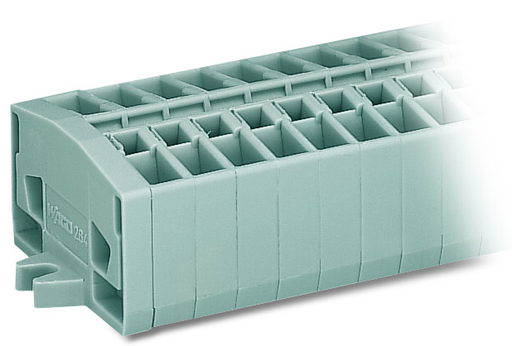

Features

Approvals

• DEKRA Certification B.V., CCA, NTR NL-7342, EN 60998
• American Bureau of Shipping, ABS, 19-HG1869868-PDA
• Underwriters Laboratories Inc., UR, E45172, UL 1059
• DEKRA Certification B.V., CSA, 70010891, C22.2
• DEKRA Certification B.V., CB, NL-49768, EN 60998
• Lloyds Register, LR, 91/20242 (E7), IEC 60998
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
• DEKRA Certification B.V., CCA, 2175624.01, EN 60998

Specifications

Ratings Per Iec/En

• Nominal voltage (III/3): 800 V
• Rated surge voltage (III/3): 8 kV
• Rated current: 24 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Operating tool
• Connectable conductor materials: Copper
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Note (conductor cross-section): 12 AWG: THHN, THWN
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Pole No.: 4
• Wiring direction: Front-entry wiring

Physical Data

• Width: 40 mm / 1.575 inch
• Height from the surface: 22.1 mm / 0.87 inch
• Depth: 32 mm / 1.26 inch
• Module width: 6 mm / 0.236 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: Mounting flange
• Marking level: Center marking

Material Data

• Color: Gray
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.361 MJ
• Weight: 17.400 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4044918425834
• Customs tariff number Sales Organisation Germany: 85369010000
