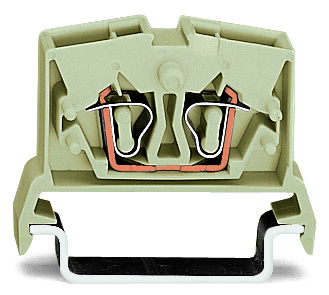

Features

Approvals

• Physikalisch Technische Bundesanstalt (PTB), ATEx, PTB 98 ATEX 3129 UII 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb, EN 60079
• Lloyds Register, LR, 91/20242 (E7), IEC 60998
• DEKRA Certification B.V., CCA, NTR NL-7077, EN 60947
• Underwriters Laboratories Inc., UR, E45172, UL 1059
• Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011
• American Bureau of Shipping, ABS, 19-HG1869868-PDA
• UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt, AEx, E185892, UL 60079
• DEKRA Certification B.V., CSA, 70010891, C22.2
• DEKRA Certification B.V., ENEC, 2160584.02, EN 60947
• Physikalisch Technische Bundesanstalt (PTB), IECEx, IECEx PTB 04.0003U Ex e IIC Gb and Ex eb I Mb, IEC 60079
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2

Specifications

Ex Information

• Rated voltage EN (Ex e II): 690 V
• Rated current (Ex e II): 23 A

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Operating tool
• Connectable conductor materials: Copper
• Solid conductor: 0.5 … 2.5 mm² / 20 … 12 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Note (conductor cross-section): 12 AWG: THHN, THWN
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Wiring direction: Front-entry wiring

Physical Data

• Width: 6 mm / 0.236 inch
• Height: 38 mm / 1.496 inch
• Depth from upper edge of DIN-rail: 24.5 mm / 0.965 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: DIN-35 rail
• Marking level: Center marking

Material Data

• Color: Light gray
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.075 MJ
• Weight: 3.858 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CH
• GTIN: 4044918415033
• Customs tariff number Sales Organisation Germany: 85369010000
