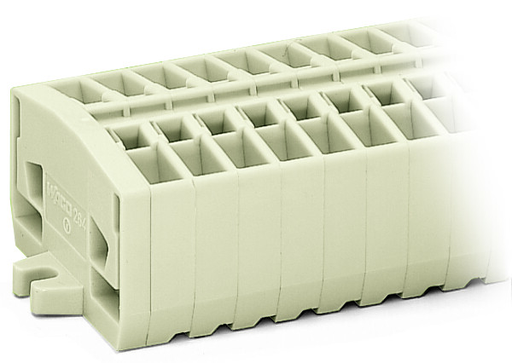

Features

Approvals

• Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011
• Physikalisch Technische Bundesanstalt (PTB), ATEx, PTB 98 ATEX 3129 UII 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb, EN 60079
• DEKRA Certification B.V., CSA, 70010891, C22.2
• UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt, AEx, E185892, UL 60079
• Physikalisch Technische Bundesanstalt (PTB), IECEx, IECEx PTB 04.0003U Ex e IIC Gb and Ex eb I Mb, IEC 60079
• Underwriters Laboratories Inc., UR, E45172, UL 1059
• Lloyds Register, LR, 91/20242 (E7), IEC 60998

Specifications

Ex Information

• Rated voltage EN (Ex e II): 690 V
• Rated current (Ex e II): 23 A

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Operating tool
• Connectable conductor materials: Copper
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Note (conductor cross-section): 12 AWG: THHN, THWN
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Pole No.: 6
• Wiring direction: Front-entry wiring

Physical Data

• Width: 43 mm / 1.693 inch
• Height from the surface: 22.1 mm / 0.87 inch
• Depth: 32 mm / 1.26 inch
• Module width: 6 mm / 0.236 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: Snap-in foot
• Marking level: Center marking

Material Data

• Color: Light gray
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.500 MJ
• Weight: 25.940 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4044918423298
• Customs tariff number Sales Organisation Germany: 85369010000
