Features

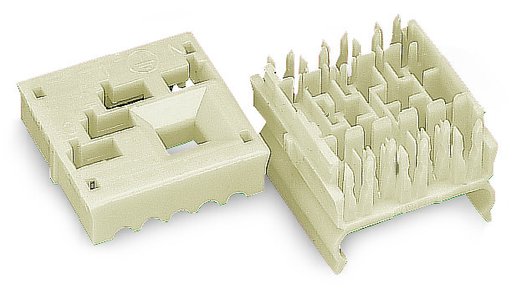

• Flexible, modular 5- to 11-pole connector system
• Future system expansions possible
• Compact design

Approvals

• UL International Germany GmbH, UL, E45171, UL 1977
• VDE Prüf- und Zertifizierungsinstitut, VDE, 40032309, EN 61984

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Rated voltage (III/2): 500 V
• Rated surge voltage (III/2): 4 kV
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Connection 1

• Strip length: 16 … 18 mm / 0.63 … 0.71 inch
• Pole No.: 5

Physical Data

• Width: 30 mm / 1.181 inch
• Height from the surface: 14 mm / 0.551 inch
• Depth: 32 mm / 1.26 inch

Material Data

• Color: White
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.102 MJ
• Weight: 3.640 g

Environmental Requirements

• Temperature stability: 105 °C

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: DE
• GTIN: 4017332145039
• Customs tariff number Sales Organisation Germany: 85369010000
