Features

Approvals

• Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011
• DEKRA Certification B.V., CSA, 1505030, C22.2 No. 158
• CQST/CNEx, CCCEx, 2020312313000178, CNCA-C23-01
• Physikalisch Technische Bundesanstalt (PTB), ATEx, PTB 03 ATEX 1189 UII 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb
• Lloyds Register, LR, 91/20112 (E9), EN 60947
• Physikalisch Technische Bundesanstalt, IECEx, IECEx PTB 05.0003 U Ex eb IIC Gb or Ex eb I Mb, IEC 60079

Specifications

Ex Information

• Rated voltage EN (Ex e II): 440 V
• Rated current (Ex e II): 28 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Operating tool || Push-button
• Connectable conductor materials: Copper
• Solid conductor: 0.5 … 4 mm² / 20 … 12 AWG
• Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
• Stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
• Fine-stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
• Fine-stranded conductor; with insulated ferrule: 0.5 … 1.5 mm² / 20 … 16 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 0.75 mm² / 18 AWG
• Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Strip length: 10 … 11 mm / 0.39 … 0.43 inch
• Pole No.: 2
• Wiring direction: Side-entry wiring

Physical Data

• Pin spacing: 12 mm / 0.472 inch
• Width: 24 mm / 0.945 inch
• Height from the surface: 22.3 mm / 0.878 inch
• Depth: 35 mm / 1.378 inch

Mechanical Data

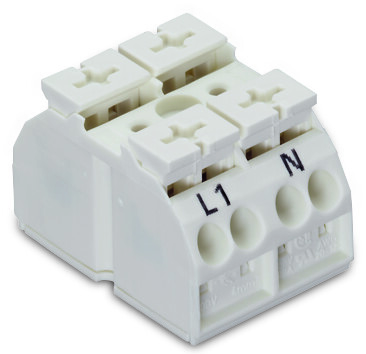

• Marking: L1-N
• Mounting type: Screw mount

Material Data

• Color: White
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.219 MJ
• Weight: 14.118 g

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454803520
• Customs tariff number Sales Organisation Germany: 85369010000
