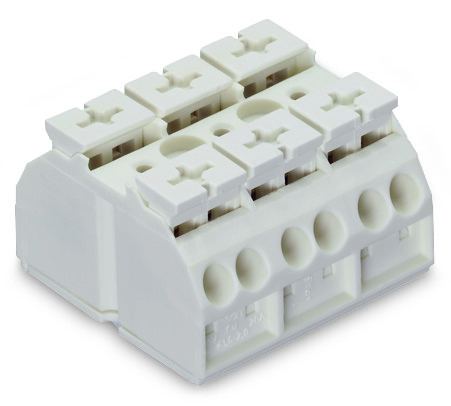

Features

Approvals

• DEKRA Certification B.V., CCA, NTR NL 6912, EN 60947
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
• UL International Germany GmbH, ENEC 15, 143856-01, EN 60998
• DEKRA Certification B.V., CCA, 2146425.01, EN 60947
• UL International Germany GmbH, UL, E45172, UL 1059
• DEKRA Certification B.V., CSA, 1505030, C22.2 No. 158
• Lloyds Register, LR, 91/20112 (E9), EN 60947

Specifications

Ratings Per Iec/En

• Nominal voltage (III/3): 500 V
• Rated surge voltage (III/3): 6 kV
• Rated current: 32 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Operating tool || Push-button
• Connectable conductor materials: Copper
• Solid conductor: 0.5 … 4 mm² / 20 … 12 AWG
• Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
• Stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
• Fine-stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
• Fine-stranded conductor; with insulated ferrule: 0.5 … 1.5 mm² / 20 … 16 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 0.75 mm² / 18 AWG
• Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Strip length: 10 … 11 mm / 0.39 … 0.43 inch
• Pole No.: 3
• Wiring direction: Side-entry wiring

Physical Data

• Pin spacing: 12 mm / 0.472 inch
• Width: 36 mm / 1.417 inch
• Height from the surface: 22.3 mm / 0.878 inch
• Depth: 35 mm / 1.378 inch

Mechanical Data

• Marking: Plain
• Mounting type: Screw mount

Material Data

• Color: White
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.317 MJ
• Weight: 20.512 g

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: DE
• GTIN: 4044918509305
• Customs tariff number Sales Organisation Germany: 85369010000
