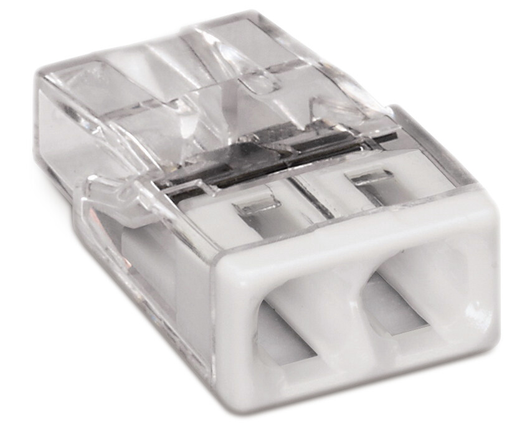

Features

• Convenient wiring via an extremely compact design
• Push-in termination of up to eight solid conductors
• Cross-section range: 0.5 … 2.5 mm²
• Any combination of conductor sizes is possible
• PUSH WIRE® connection terminates solid (“s”) copper conductors

Approvals

• Underwriters Laboratories Inc., cULus_Listed_667F, E69654, UL 486C
• Lloyds Register, LR, 04/20013 (E8), EN 60998
• VDE Prüf- und Zertifizierungsinstitut, VDE, 40029794, EN 60998
• American Bureau of Shipping, ABS, 15-HG1419918-PDA
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000015T, EN 60998

Specifications

Notes

• Safety information 1: In grounded power lines

Ratings Per Iec/En

• Ratings per: IEC/EN 60998
• Nominal voltage (II/2): 450 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 24 A
• Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 486C
• Bemessungsspannung UL: 600 V
• Bemessungsstrom UL: 20 A

Connection 1

• Connection technology: PUSH WIRE®
• Actuation type: Push-in
• Connectable conductor materials: Copper || Aluminum
• Anschließbare Leiterwerkstoffe Hinweis: WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.For spring clamp connections with PUSH WIRE® connection technology, WAGO recommends that the aluminum conductor first be cleaned and then immediately inserted into the clamping unit filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm² = 16 A4 mm² = 22 A
• Solid conductor: 0.5 … 2.5 mm² / 20 … 16 AWG
• Strip length: 11 mm / 0.43 inch
• Wiring direction: Side-entry wiring

Physical Data

• Width: 10 mm / 0.394 inch
• Height: 5.8 mm / 0.228 inch
• Depth: 16.7 mm / 0.657 inch

Material Data

• Color: Transparent
• Cover color: White
• Flammability class per UL94: V2
• Fire load: 0.022 MJ
• Weight: 0.713 g

Environmental Requirements

• Surrounding air temperature (operation): 60 °C
• Continuous operating temperature: 105 °C
• Temperature marking per EN 60998: T60

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821027843
• Customs tariff number Sales Organisation Germany: 85369010000
