Features

Approvals

• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000015T, EN 60998

Specifications

Notes

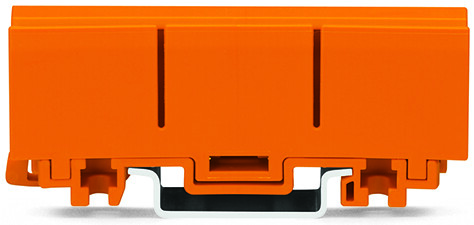

• Note: One single carrier can hold up to 24 clamping units in a very narrow space. Previously, this was only possible using rail-mount terminal blocks.Advantages:Mount carrier onto DIN-35 rail or via screws – easily and quicklyAccommodate three 2.5 mm² (12 AWG) 2273 Series Connectors in a single carrierEasily exchange connectorsLarge marking area for self-adhesive marking strips or for direct marking with permanent felt-tip pen

Physical Data

• Width: 18.5 mm / 0.728 inch
• Height: 72.5 mm / 2.854 inch
• Depth from upper edge of DIN-rail: 21.5 mm / 0.846 inch

Mechanical Data

• Mounting type: DIN-35 rail || Screw mount
• Suitable: For single- and double-row connectors (2273 Series)

Material Data

• Color: Orange
• Fire load: 0.322 MJ
• Weight: 10.740 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821101871
• Customs tariff number Sales Organisation Germany: 39269097900
