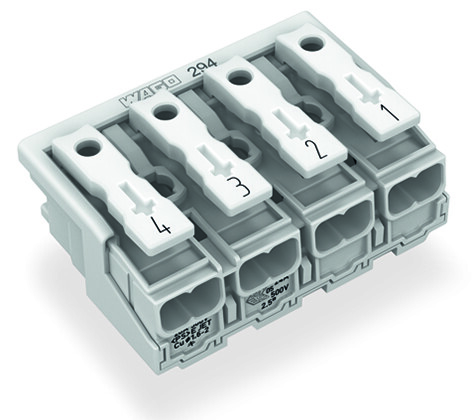

Features

• External connection of solid, stranded and fine-stranded conductors
• Universal conductor termination (AWG, metric)
• Third contact at bottom
• Strain relief plate can be retrofitted

Approvals

• DEKRA Certification B.V., ENEC 05, 2128791.01, EN 60998

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60998-1 || IEC/EN 60998-2-2
• Ratings (note): Connection points
• Nominal voltage (II/2): 500 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 24 A
• Ratings (note) 2: Connection points
• Rated voltage (II/2) 2: 500 V
• Rated surge voltage (II/2) 2: 4 kV
• Rated current 2: 24 A
• Rated current 3: 16 A
• Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2

Connection 1

• Connection type (1): External 1
• Connection technology: Push-in CAGE CLAMP®
• Number of connection points: 2
• Actuation type: Operating tool || Push-button
• Connectable conductor materials: Copper
• Solid conductor: 0.5 … 2.5 mm² / 18 … 12 AWG
• Solid conductor; push-in termination: 0.5 … 2.5 mm² / 18 … 12 AWG
• Stranded conductor: 0.5 … 2.5 mm² / 18 … 14 AWG
• Fine-stranded conductor: 0.5 … 2.5 mm² / 18 … 14 AWG
• Fine-stranded conductor; with insulated ferrule: 0.5 … 1.5 mm² / 18 … 16 AWG
• Fine-stranded conductor; with uninsulated ferrule: 0.5 … 1.5 mm² / 18 … 16 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 0.5 mm² / 18 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Pole No.: 4
• Wiring direction: Side-entry wiring

Connection 2

• Connection type 2: Internal 2
• Connection technology 2: PUSH WIRE®
• Number of connection points 2: 1
• Solid conductor 2: 0.5 … 2.5 mm² / 18 … 14 AWG
• Fine-stranded conductor; with insulated ferrule 2: 0.5 … 1 mm² / 18 … 16 AWG
• Fine-stranded conductor; with uninsulated ferrule 2: 0.5 … 1.5 mm² / 18 … 14 AWG
• Strip length 2: 8 … 9 mm / 0.31 … 0.35 inch

Connection 3

• Connection type (3): Internal 3
• Number of connection points 3: 1
• Solid conductor 3: 0.5 … 1.5 mm² / 18 … 16 AWG
• Fine-stranded conductor; with insulated ferrule 3: 0.5 … 0.75 mm² / 18 AWG
• Fine-stranded conductor; with uninsulated ferrule 3: 0.5 … 1 mm² / 18 AWG

Connection 4

• Connection type (4): Internal 4
• Number of connection points 4: 1
• Solid conductor 4: 0.5 … 0.75 mm² / 18 AWG

Physical Data

• Pin spacing: 10 mm / 0.394 inch
• Width: 40 mm / 1.575 inch
• Height from the surface: 17 mm / 0.669 inch
• Depth: 27.3 mm / 1.075 inch

Mechanical Data

• Marking: 4-3-2-1
• Mounting type: Without snap-in mounting feet

Material Data

• Color: White
• Material group: IIIa
• Insulation material: Polycarbonate (PC)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.240 MJ
• Weight: 12.160 g

Environmental Requirements

• Temperature stability: 120 °C
• T marking: T85

Commercial Data

• Packaging type: Lamination
• Country of origin Sales Organisation Germany: CH
• GTIN: 4050821097778
• Customs tariff number Sales Organisation Germany: 85369010000
