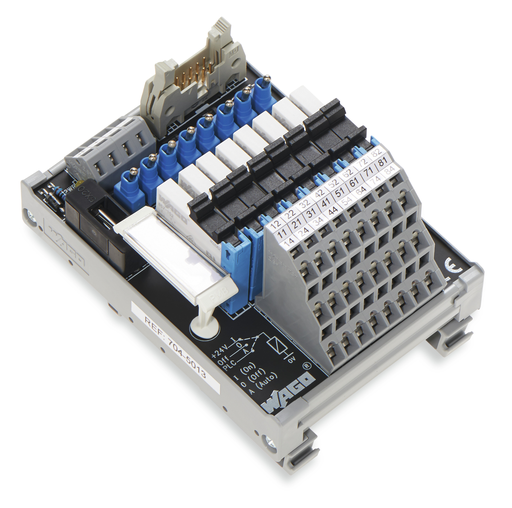

Specifications

Electrical Data

• Inputs/outputs: 8-channel relay output
• Nominal operating voltage: DC 24 V
• Operating voltage range: ±10 %
• Number of changeover/switchover contacts: 1
• Limiting continuous current: 5 A
• Switching voltage (max.): AC 250 V; DC 48 V
• Switching power (resistive) (max.): AC 1250 VA; DC 50 W
• Mechanical life: 10 x 106 switching operations
• Status indicator: Green LED (channel) || Yellow LED (power supply)
• Internal fuse: Supply: 1 A; Relay output: -
• WAGO Basic Relay: 857-152
• Specialty functions: With manual operation

Safety And Protection

• Rated voltage: 50 V
• Rated surge voltage: 0.8 kV
• Pollution degree: 2
• Dielectric strength, control/load circuit (AC, 1 min): 4 kVrms
• Dielectric strength, load/load circuit (AC, 1 min): 1 kVrms

Connection Data

• Compatible PLC Modules: Siemens S7-300 || Siemens S7-1500 || GE Fanuc 9030 || Schneider TSX || Schneider Modicon M340 || Schneider Modicon Quantum || Schneider Modicon TM3 || Rockwell Compact Logix || WAGO I/O System 753 || WAGO I/O System 750 || Omron CJ1W
• Compatible PLC I/O Card Types: 6ES7 322-1BF01-0AA0 || 6ES7 322-8BF00-0AB0 || 6ES7 323-1BH01-0AA0 || 6ES7 327-1BH00-0AB0 || 6ES7 326-2BF01-0AB0 || 6ES7 326-2BF10-0AB0 || 6ES7 522-1BF00-0AB0 || IC693 MDL730 || IC693 MDL732 || TM3 DQ8T(G) || TSX DSZ 04T22 || TSX DSZ 08T2 || TSX DSZ 08T2K || TSX DMZ 16DTK || TSX DSY 08T2 || BMX DDM 16022 || 140 DDM 390 00 || 1769 - OB8 || 753-530 (x1) || 750-1502 || CJ1W-OD204
• Pole No.: 10
• Connection type (1): System
• Pole number 1: 10
• Pluggable connectors: DIN 41651 male connector
• Mating direction: Vertical
• Connection type 2: Field
• Pole number 2: 24
• Design 2: PCB terminal blocks (triple-deck)
• WAGO Connector 2: WAGO 737 Series
• Solid conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length 2: 5 … 6 mm / 0.2 … 0.24 inch
• Connection type (3): Supply
• Pole number 3: 4
• Design 3: PCB terminal blocks
• WAGO Connector 3: WAGO 236 Series
• Solid conductor 3: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor (3): 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length 3: 5 … 6 mm / 0.2 … 0.24 inch
• Note (conductor cross-section): 12 AWG: THHN, THWN

Physical Data

• Width: 75 mm / 2.953 inch
• Height: 105 mm / 4.134 inch
• Depth from upper edge of DIN-rail: 65 mm / 2.559 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Contact material (relay): AgSnO2
• Fire load: 1.178 MJ
• Weight: 240.000 g

Environmental Requirements

• Surrounding air temperature (operation): -25 … 40 °C
• Surrounding air temperature (storage): -40 … 70 °C
• Relative humidity: ≤ 85% (non-condensing)

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: FR
• GTIN: 4045454980115
• Customs tariff number Sales Organisation Germany: 85366990990
