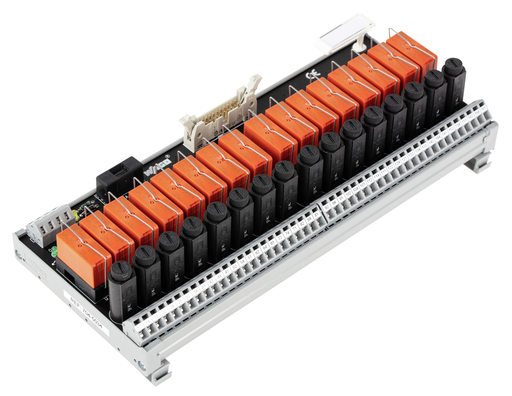

Specifications

Notes

• Note: Independent of the relay used, the maximum continuous current is 5A per channel.

Electrical Data

• Inputs/outputs: 16-channel relay output
• Nominal operating voltage: DC 24 V
• Operating voltage range: ±10 %
• Number of changeover/switchover contacts: 1
• Limiting continuous current: 5 A
• Making capacity: 2 ms 16 A
• Switching voltage (max.): AC 250 V; DC 48 V
• Switching power (resistive) (max.): AC 1250 VA; DC 50 W
• Mechanical life: 30 x 106 switching operations
• Status indicator: Green LED (channel) || Yellow LED (power supply)
• Internal fuse: Supply: 1 A; Relay output: 5 A
• WAGO Basic Relay: 788-154
• Specialty functions: With output fuse

Safety And Protection

• Rated voltage: 50 V
• Rated surge voltage: 0.8 kV
• Pollution degree: 2
• Dielectric strength, control/load circuit (AC, 1 min): 4 kVrms
• Dielectric strength, load/load circuit (AC, 1 min): 1 kVrms

Connection Data

• Compatible PLC Modules: Siemens S7-300 || Siemens S7-400 || Siemens S7-1500 || GE Fanuc 9030 || GE Fanuc RX3i || Schneider Modicon TM3 || Schneider TSX || Schneider Twido || Schneider Modicon M340 || Schneider Modicon Quantum || Rockwell Compact Logix || Rockwell Control Logix || WAGO I/O System 753 || WAGO I/O System 750 || Omron CJ1W
• Compatible PLC I/O Card Types: 6ES7 313-5BE01-0AB0 || 6ES7 313-5BG04-0AB0 || 6ES7 313-6BE01-0AB0 || 6ES7 313-6BF03-0AB0 || 6ES7 313-6CE01-0AB0 || 6ES7 313-6CF03-0AB0 || 6ES7 314-6BF01-0AB0 || 6ES7 314-6BG03-0AB0 || 6ES7 314-6CF01-0AB0 || 6ES7 314-6CG03-0AB0 || 6ES7 322-1BH01-0AA0 || 6ES7 322-1BH10-0AA0 || 6ES7 322-1BH80-0AA0 || 6ES7 322-1BL00-0AA0 || 6ES7 322-1BP00-0AA0 || 6ES7 322-1EH01-0AA0 || 6ES7 322-8BH01/8BH10-0AB0 || 6ES7 323-1BL00-0AA0 || 6ES7 422-1BL00-0AA0 || 6ES7 511-1CK00-0AB0 || 6ES7 512-1CK00-0AB0 || 6ES7 522-1BH00-0AB0 || 6ES7 522-1BH01-0AB0 || 6ES7 522-1BH10-0AA0 || 6ES7 522-1BL00-0AB0 || 6ES7 522-1BL01-0AB0 || 6ES7 522-1BL10-0AA0 || 6ES7 523-1BL00-0AA0 || IC693 MDL740 || IC693 MDL742 || IC693 MDL753 || IC694 MDL753 || TM3 DQ16T(G) || TM3 DQ16TK || TM3 DQ32TK || TSX DSZ 32T2 || TSX DMZ 28DT || TSX DMZ 28DTK || TSX DMZ 64DTK || TSX DSY 16T2 || TSX DSY 32T2K || TSX DSY 64T2K || TSX DMY 28FK || TSX DMY 28RFK || TM2 DDO 16TK || TM2 DDO 32TK || BMX DDO 1602 || BMX DDO 3202K || BMX DDO 6402K || BMX DDM 3202K || 140 DDO 353 00 || 140 DDO 353 01 || 140 DDO 364 00 || 140 DVO 853 00 || 1769 - OB16 || 1769 - OB16P || 1769 - OB32 || 1769 - OB32T || 1756 - OB16E || 1756 - OB32 || 753-530 (x2) || 750-1500 || CJ1W-OD212 || CJ1W-OD232 || CJ1W-OD262 || CJ1W-MD232
• Connection type (1): System
• Pole number 1: 20
• Pluggable connectors: DIN 41651 male connector
• Mating direction: Vertical
• Connection type 2: Field
• Pole number 2: 48
• Design 2: PCB terminal blocks
• WAGO Connector 2: WAGO 236 Series
• Solid conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length 2: 5 … 6 mm / 0.2 … 0.24 inch
• Connection type (3): Supply
• Pole number 3: 4
• Design 3: PCB terminal blocks
• WAGO Connector 3: WAGO 236 Series
• Solid conductor 3: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor (3): 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length 3: 5 … 6 mm / 0.2 … 0.24 inch
• Note (conductor cross-section): 12 AWG: THHN, THWN

Physical Data

• Width: 247 mm / 9.724 inch
• Height: 105 mm / 4.134 inch
• Depth from upper edge of DIN-rail: 55 mm / 2.165 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Contact material (relay): AgNi 90/10
• Fire load: 5.316 MJ
• Weight: 685.000 g

Environmental Requirements

• Surrounding air temperature (operation): -25 … 50 °C
• Surrounding air temperature (storage): -40 … 70 °C
• Relative humidity: ≤ 85% (non-condensing)

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: FR
• GTIN: 4045454980153
• Customs tariff number Sales Organisation Germany: 85364900990
