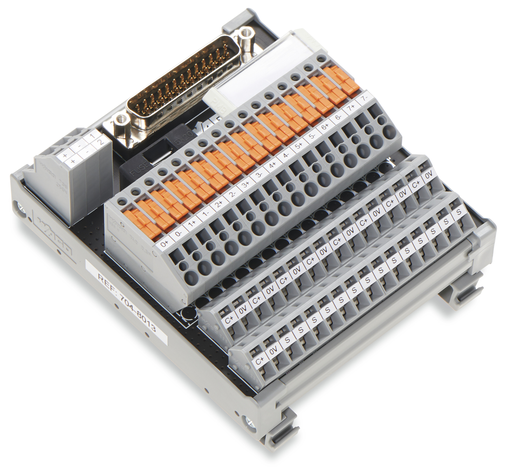

Specifications

Electrical Data

• Inputs/outputs: 8-channel analog input or output
• Circuit type: 2-wire connection || 4-wire connection
• Operating voltage: ≤48 VDC
• Limiting continuous current: 1 A
• Internal fuse: Supply: 2 A
• Specialty functions: With disconnect/test terminal blocks

Safety And Protection

• Rated voltage: 50 V
• Rated surge voltage: 0.8 kV
• Pollution degree: 2

Connection Data

• Compatible PLC Modules: Siemens S7-300 || Siemens S7-400 || Siemens S7-1500 || GE Fanuc 9030 || GE Fanuc RX3i || Schneider Modicon TM3 || Schneider TSX || Schneider Modicon M340 || Schneider Modicon Quantum || Rockwell Compact Logix || Rockwell Control Logix || WAGO I/O System 753
• Compatible PLC I/O Card Types: 6ES7 331-1KF02-0AB0 || 6ES7 331-7HF01-0AB0 || 6ES7 331-7KF02-0AB0 || 6ES7 331-7NF00-0AB0 || 6ES7 331-7NF10-0AB0 || 6ES7 331-7PF01-0AB0 || 6ES7 331-7SF00-0AB0 || 6ES7 331-7TF00-0AB0 || 6ES7 332-5HF00-0AB0 || 6ES7 332-8TF01-0AB0 || 6ES7 334-0CE01-0AA0 || 6ES7 336-4GE01-0AB0 || 6ES7 531-7NF10-0AB0 || 6ES7 531-7NF00-0AB0 || 6ES7 531-7KF00-0AB0 || 6ES7 532-5HF00-0AB0 || 6ES7 534-7QE00-0AB0 || 6ES7 431-1KF00-0AB0 || 6ES7 431-1KF10-0AB0 || 6ES7 431-7KF00-0AB0 || 6ES7 432-1HF00-0AB0 || IC693 ALG222 || IC693 ALG223 || IC693 ALG392 || IC694 ALG223 || IC694 ALG392 || TM3 AI8(G) || TM3 TI8T(G) || TM3 AM6(G) || TSX AEZ 801 || TSX AEZ 802 || TSX AEY 414 || 140 ACI 030 00 || 140 ACI 040 00 || 140 ARI 030 10 || 140 AVI 030 00 || 140 ACO 130 00 || BMX ART 0414 || BMX ART 0814 || BMX AMI 0800 || BMX AMI 0810 || BMX AMM 0600 || BMX AMO 0802 || 1769 - IR6 || 1769 - IF4XOF2 (F) || 1769 - IF16C || 1769 - OF8V || 1769 - OF8C || 1756 - IF6CIS || 1756 - IF6I || 1756 - IF8 || 1756 - IF8H || 1756 - IF16 || 1756 - IR6I || 1756 - OF6CI || 1756 - OF6VI || 1756 - OF8 || 1756 - OF8H || 753-453 (x2) || 753-455 (x2) || 753-457 (x2) || 753-459 (x2) || 753-553 (x2) || 753-555 (x2) || 753-557 (x2) || 753-559 (x2)
• Connection type (1): System
• Pole number 1: 25
• Pluggable connectors: D-sub male connector
• Mating direction: Vertical
• Connection type 2: Field
• Pole number 2: 16
• Design 2: PCB terminal blocks
• WAGO Connector 2: WAGO 742 Series
• Solid conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length 2: 8 … 9 mm / 0.31 … 0.35 inch
• Connection type (3): Field
• Pole number 3: 32
• Design 3: PCB terminal blocks (double-row)
• WAGO Connector 3: WAGO 236 Series
• Solid conductor 3: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor (3): 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length 3: 5 … 6 mm / 0.2 … 0.24 inch
• Connection type (4): Power supply
• Pole number (4): 6
• Design (4): PCB terminal blocks (double-deck)
• Connection technology 4: CAGE CLAMP®
• WAGO Connector (4): WAGO 736 Series
• Solid conductor 4: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor (4): 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length (4): 5 … 6 mm / 0.2 … 0.24 inch
• Note (conductor cross-section): 12 AWG: THHN, THWN

Physical Data

• Width: 92 mm / 3.62 inch
• Height: 105 mm / 4.134 inch
• Depth from upper edge of DIN-rail: 50 mm / 1.969 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 2.370 MJ
• Weight: 190.000 g

Environmental Requirements

• Surrounding air temperature (operation): -20 … 50 °C
• Surrounding air temperature (storage): -40 … 70 °C
• Relative humidity: ≤ 85% (non-condensing)

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: FR
• GTIN: 4050821115564
• Customs tariff number Sales Organisation Germany: 85366990990
