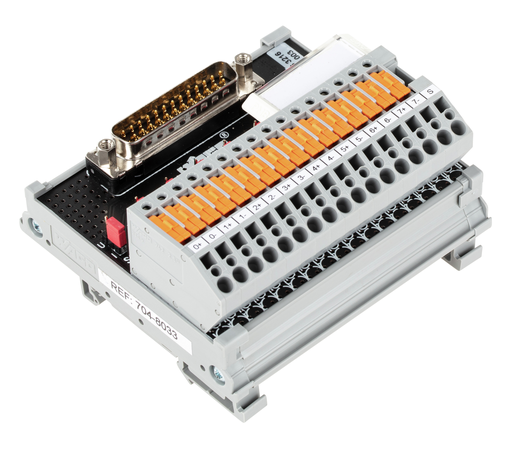

Specifications

Electrical Data

• Inputs/outputs: 8-channel analog input or output
• Circuit type: 2-wire connection
• Operating voltage: ≤48 VDC
• Limiting continuous current: 1 A
• Internal fuse: No
• Specialty functions: With disconnect/test terminal blocks

Safety And Protection

• Rated voltage: 50 V
• Rated surge voltage: 0.8 kV
• Pollution degree: 2

Connection Data

• Compatible PLC Modules: Siemens S7-300 || Siemens S7-1500 || Schneider TSX
• Compatible PLC I/O Card Types: 6ES7 313-5BE01-0AB0 || 6ES7 313-5BG04-0AB0 || 6ES7 314-6BF01-0AB0 || 6ES7 314-6BG03-0AB0 || 6ES7 314-6CF01-0AB0 || 6ES7 314-6CG03-0AB0 || 6ES7 511-1CK00-0AB0 || 6ES7 512-1CK00-0AB0 || TSX AEY 420 || TSX AEY 800 || TSX AEY 810 || TSX AEY 1600 || TSX ASY 800
• Connection type (1): System
• Pole number 1: 25
• Pluggable connectors: D-sub male connector
• Mating direction: Vertical
• Connection type 2: Field
• Pole number 2: 17
• Design 2: PCB terminal blocks
• Solid conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length 2: 8 … 9 mm / 0.31 … 0.35 inch
• WAGO Connector 3: WAGO 236 Series
• Note (conductor cross-section): 12 AWG: THHN, THWN

Physical Data

• Width: 90 mm / 3.543 inch
• Height: 85 mm / 3.346 inch
• Depth from upper edge of DIN-rail: 46 mm / 1.811 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 2.350 MJ
• Weight: 140.855 g

Environmental Requirements

• Surrounding air temperature (operation): -20 … 50 °C
• Surrounding air temperature (storage): -40 … 70 °C
• Relative humidity: ≤ 85% (non-condensing)

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143982726
• Customs tariff number Sales Organisation Germany: 85369010000
