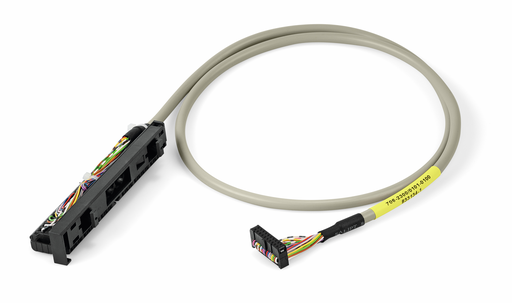

WAGO 706-2300/302-300
706-2300/302-300 WAGO 706-2300/302-300
OutOfStock
System cable; for Siemens S7-300; 8 digital inputs and 8 digital outputs; Length: 3 m; Conductor cross-section: 0.14 mm²
Got questions?
Send us a message
or call us at 1-800-335-5111 for additional assistance.
System cable; for Siemens S7-300; 8 digital inputs and 8 digital outputs; Length: 3 m; Conductor cross-section: 0.14 mm²
Specifications
Notes
- Note: When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.
Electrical Data
- Inputs/outputs: 8 digital inputs and 8 digital outputs
- Operating voltage: ≤ AC/DC 35 V
- Current per wire (max.): 1 A
Connection Data
- Compatible PLC Modules: Siemens S7-300
- Compatible PLC I/O Card Types: 6ES7 323-1BH01-0AA0 || 6ES7 327-1BH00-0AB0
- Connection type (1): System
- Pole number 1: 10
- Pluggable connectors: Pluggable connector per DIN 41651; Female connector
- Connection type 2: System
- Pole number 2: 10
- Connector 2: Pluggable connector per DIN 41651; Female connector
- Connection type (3): System
- Pole number 3: 20
- Connector 3: Siemens 6ES7-392-1BJ00-0AA0
- Cable type: LiYY
- Wire cross-section: 0.14 mm²
- Color code: Per DIN VDE 47100
Physical Data
- Cable length: 3 m
Material Data
- Fire load: 0.000 MJ
- Weight: 534.000 g
Environmental Requirements
- Surrounding air temperature (operation): -20 … 50 °C
Commercial Data
- Packaging type: Bag
- Country of origin Sales Organisation Germany: FR
- GTIN: 4055143976770
- Customs tariff number Sales Organisation Germany: 85444290900
