WAGO 706-4769/504-200
706-4769/504-200 WAGO 706-4769/504-200
OutOfStock

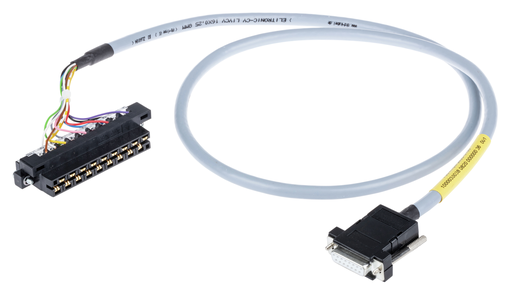

System cable; for Rockwell Compact Logix; 4 analog outputs (voltage); Length: 2 m; Conductor cross-section: 0.25 mm²
Got questions?
Send us a message
or call us at 1-800-335-5111 for additional assistance.
System cable; for Rockwell Compact Logix; 4 analog outputs (voltage); Length: 2 m; Conductor cross-section: 0.25 mm²
Specifications
Notes
- Note: When using more than 10 wires, the maximum current per wire must be reduced to 1 A.
Electrical Data
- Inputs/outputs: 4 analog outputs; voltage
- Operating voltage: ≤ AC/DC 35 V
- Current per wire (max.): 2 A
Connection Data
- Compatible PLC Modules: Rockwell Compact Logix
- Compatible PLC I/O Card Types: 1769 - OF4
- Connection type (1): System
- Pole number 1: 15
- Pluggable connectors: D-sub female connector
- Connection type 2: System
- Pole number 2: 10
- Connector 2: Rockwell-RTBN10
- Cable type: LiYCY
- Wire cross-section: 0.25 mm²
- Color code: Per DIN VDE 47100
Physical Data
- Cable length: 2 m
Material Data
- Fire load: 0.000 MJ
- Weight: 386.000 g
Environmental Requirements
- Surrounding air temperature (operation): -20 … 50 °C
Commercial Data
- Packaging type: Bag
- Country of origin Sales Organisation Germany: FR
- GTIN: 4055143999465
- Customs tariff number Sales Organisation Germany: 85444290900
