WAGO 706-5030/300-200
706-5030/300-200 WAGO 706-5030/300-200
OutOfStock

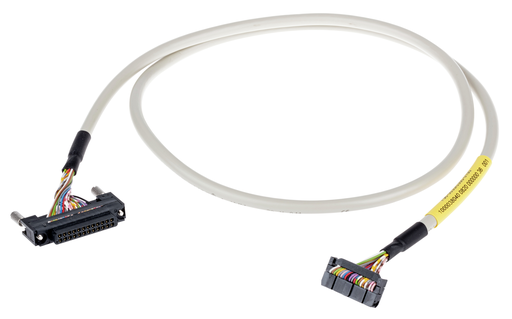

System cable; for Gefanuc 9030; 16 digital inputs or outputs; Length: 2 m; Conductor cross-section: 0.14 mm²
Got questions?
Send us a message
or call us at 1-800-335-5111 for additional assistance.
System cable; for Gefanuc 9030; 16 digital inputs or outputs; Length: 2 m; Conductor cross-section: 0.14 mm²
Specifications
Notes
- Note: When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.
Electrical Data
- Inputs/outputs: 16 digital inputs or outputs
- Operating voltage: ≤ AC/DC 35 V
- Current per wire (max.): 1 A
Connection Data
- Compatible PLC Modules: GE Fanuc 9030 || GE Fanuc RX3i
- Compatible PLC I/O Card Types: IC693 MDL655 || IC693 MDL753 || IC694 MDL655 || IC694 MDL753
- Connection type (1): System
- Pole number 1: 20
- Pluggable connectors: Pluggable connector per DIN 41651; Female connector
- Connection type 2: System
- Pole number 2: 24
- Connector 2: GeFanuc IC 693 ACC 316
- Cable type: LiYY
- Wire cross-section: 0.14 mm²
- Color code: Per DIN VDE 47100
Physical Data
- Cable length: 2 m
Material Data
- Fire load: 0.000 MJ
- Weight: 228.000 g
Environmental Requirements
- Surrounding air temperature (operation): -20 … 50 °C
Commercial Data
- Packaging type: Bag
- Country of origin Sales Organisation Germany: FR
- GTIN: 4055143985994
- Customs tariff number Sales Organisation Germany: 85444290900
