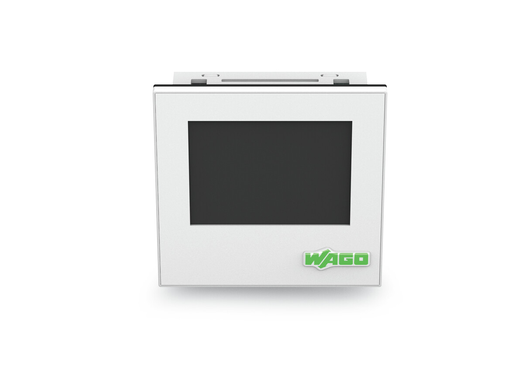

Features

• Internet browser
• Java Virtual Machine
• Panel configuration software

Approvals

• National Radio Research Agency, KC, MSIP-REM-W43-WBP762, Article 58-2, Clause 3
• UL International Germany GmbH, UL, E175199 Sec.9, UL 508

Specifications

Technical Data

• Display diagonal: 8.9 cm (3.5 Inches)
• Display: TFT
• Display colors: 32,768 colors
• Graphics resolution: (320 x 240) px
• Contrast ratio: 250:1
• Viewing angle (horizontal/vertical): -45° … 45° / -15° … 35°
• Brightness: 560 cd/m2
• HBT (Half Brightness Time): 50000 h
• Visualization: Web Visu
• Communication: Modbus (TCP, UDP) || ETHERNET || Modbus® RTU || CANopen
• Operating system: Windows CE
• Processor: 32-bit ARM9 200 MHz
• Main memory (RAM): 64 MB
• Internal memory (flash): 64 MB
• Memory: 1 MB
• Memory card type: MicroSD (max. 2 GB)
• Baud rate: ETHERNET: 10/100 Mbit/s
• Controls: Touch, analog, resistive
• Supply voltage: 24 VDC (18 … 30 V)
• Max. input current (24 V): 250 mA
• Operating power: 8 W … 12 W

Connection Data

• Connection technology: communication/fieldbus: Modbus TCP: 1 x RJ-45; Modbus RTU: 1 x D-sub 9 plug; CANopen: 1 x RJ-45; RS-485 serial interface: 1 x RJ-45; USB: 1 x USB 2.0 host (type A)

Physical Data

• Width: 96 mm / 3.779 inch
• Height: 96 mm / 3.78 inch
• Depth: 29 mm / 1.142 inch
• Panel cutout (W x H): (91 x 91) mm

Mechanical Data

• Weight: 165.000 g
• Front panel: Plastic, polyester film
• Housing material: Plastic
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 50 °C
• Surrounding air temperature (storage): -10 … 60 °C
• Protection type: IP65
• Note on protection type: IP65 (front side); IP20 (rear side)
• Relative humidity (without condensation): 85 %
• Mounting type: 2 x clamping elements
• Fire load: 0.000 MJ

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821396857
• Customs tariff number Sales Organisation Germany: 84714100000
