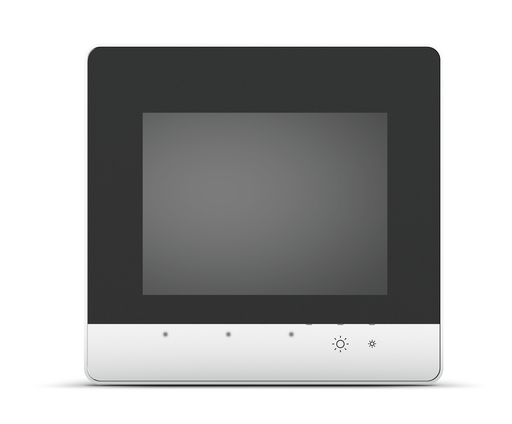

Features

Approvals

• National Radio Research Agency, KC, MSIP-REM-W43-WBP762, Article 58-2, Clause 3
• DNV Germany GmbH, DNV, TAA00001FS, DNVGL-CG-339,Nov.2016
• Polski Rejestr Statków, PRS, TE/2190/880590/18
• Underwriters Laboratories Inc., UL, E175199, UL 61010-2-201

Specifications

Technical Data

• Display diagonal: 14.5 cm (5.7 Inches)
• Display: Resistive touchscreen
• Display colors: 262,000 colors
• Graphics resolution: (640 x 480) px
• Contrast ratio: 300:1
• Viewing angle (horizontal/vertical): 80° / 80°
• Brightness: 630 cd/m2
• HBT (Half Brightness Time): 30000 h
• Visualization: Web Visu
• ETHERNET protocols: DHCP || DNS || FTP || FTPS || HTTP || HTTPS || SSH
• Communication: Web browser (CODESYS2)
• Operating system: Linux®
• Processor: ARM® Cortex™ A8 600 MHz
• Main memory (RAM): 512 MB
• Internal memory (flash): 1024 MB
• Memory card type: MicroSD (max. 2 GB); microSDHC (max. 32 GB)
• Baud rate: ETHERNET: 10/100 Mbit/s
• Indicators: Three-color LED (red, green, blue)
• Controls: Resistive touch panel; 2 capacitive keys; proximity sensor
• Supply voltage: 24 VDC, SELV (18 … 31.2 V); with reverse voltage protection
• Max. input current (24 V): 210 mA
• Operating power: 5.1 W (max.)

Connection Data

• Connection technology: communication/fieldbus: Modbus TCP: 2 x RJ-45; USB: 2 x USB 2.0 host (type A)

Physical Data

• Width: 172 mm / 6.772 inch
• Height: 163 mm / 6.417 inch
• Depth: 58 mm / 2.283 inch
• Panel cutout (W x H): (157 x 148) mm

Mechanical Data

• Weight: 1067.000 g
• Front panel: Anodized aluminum, polyester film
• Housing material: Anodized aluminum
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -20 … 80 °C
• Protection type: IP65
• Note on protection type: IP65 (front side); IP20 (rear side), per EN 60529
• Relative humidity (without condensation): 90 %
• Mounting type: Clamping elements (included) or VESA mount (4 x M4x8)
• Fire load: 0.000 MJ

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143356503
• Customs tariff number Sales Organisation Germany: 84714100000
