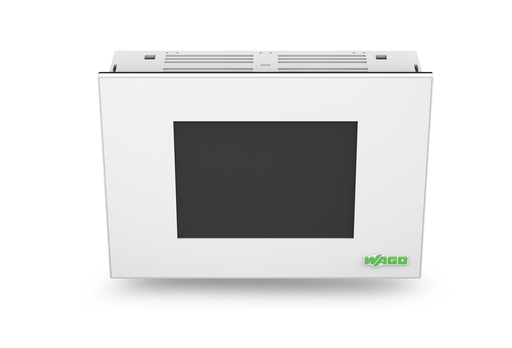

Features

Approvals

• UL International Germany GmbH, UL, E175199 Sec.9, UL 508
• National Radio Research Agency, KC, MSIP-REM-W43-CTP762, Article 58-2, Clause 3

Specifications

Technical Data

• Display diagonal: 14.5 cm (5.7 Inches)
• Display: TFT
• Display colors: 4096 colors
• Graphics resolution: (320 x 240) px
• Contrast ratio: 35:1
• Viewing angle (horizontal/vertical): -10° … 30° / -30° … 30°
• Brightness: 350 cd/m2
• HBT (Half Brightness Time): 50000 h
• Visualization: Target Visu
• Communication: Modbus (TCP, UDP) || ETHERNET || Modbus® RTU || CANopen
• Operating system: Windows CE
• Processor: 32-bit ARM9 200 MHz
• Programming environment: WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
• Main memory (RAM): 64 MB
• Internal memory (flash): 64 MB
• Memory: 1 MB
• Program memory: 1024 kByte
• Data memory: 1024 kByte
• Non-volatile software memory: 128 kB
• Memory card type: SD card (max. 2 GB)
• Baud rate: ETHERNET: 10/100 Mbit/s
• Controls: Touch, analog, resistive
• Supply voltage: 24 VDC (18 … 30 V)
• Max. input current (24 V): 250 mA
• Operating power: 8 W … 12 W

Connection Data

• Connection technology: communication/fieldbus: Modbus TCP: 1 x RJ-45; Modbus RTU: 1 x D-sub 9 plug; CANopen: 1 x RJ-45; RS-232 serial interface: 1 x D-sub 9 plug; RS-232 + RS-485 serial interface: 1 x D-sub 9 plug; USB: 2 x USB 2.0 host (type A)

Physical Data

• Width: 208 mm / 8.189 inch
• Height: 150 mm / 5.906 inch
• Depth: 42 mm / 1.654 inch
• Panel cutout (W x H): (198 x 140) mm

Mechanical Data

• Weight: 570.000 g
• Front panel: Plastic, polyester film
• Housing material: Plastic
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 50 °C
• Surrounding air temperature (storage): -10 … 60 °C
• Protection type: IP65
• Note on protection type: IP65 (front side); IP20 (rear side)
• Relative humidity (without condensation): 85 %
• Mounting type: 4 x clamping elements
• Fire load: 0.000 MJ

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821396871
• Customs tariff number Sales Organisation Germany: 84714100000
