Features

• protection against mismating eliminates errors
• easy tool-free operation, a wide range of coding options
• for intelligent, easy lighting installation
• convenient installation and commissioning

Approvals

• American Bureau of Shipping, ABS, 19-HG1869855-PDA, Steel Vessel Rules
• Lloyds Register, LR, 08/20047 (E2), EN 61535
• Underwriters Laboratories Inc., cURus, E45171, UL 1977
• DEKRA Certification B.V., CCA, NL-64352, IEC 61535
• DEKRA Certification B.V., CCA, 71-11299, EN 61535
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001Z6

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 250 V
• Rated surge voltage (III/3): 4 kV
• Rated current: 16 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

• Hinweis für den amerikanischen Markt: Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 5 A and voltages up to 600 V. For further information, please contact your local sales office.
• Rated voltage UL 1977: 600 V
• Rated current UL 1977: 12 A

Connection 1

• Pole No.: 5

Physical Data

• Pin spacing: 4.4 mm / 0.173 inch
• Width: 23.6 mm / 0.929 inch
• Height: 15.7 mm / 0.618 inch
• Height from the surface: 12.2 mm / 0.48 inch
• Depth: 28.4 mm / 1.118 inch
• Solder pin length: 3.5 mm
• Solder pin dimensions: 1 x 0.8 mm
• Drilled hole diameter with tolerance: 1.3 (+0.1) mm

Mechanical Data

• Application: DALI, Lighting Management
• Coding: I

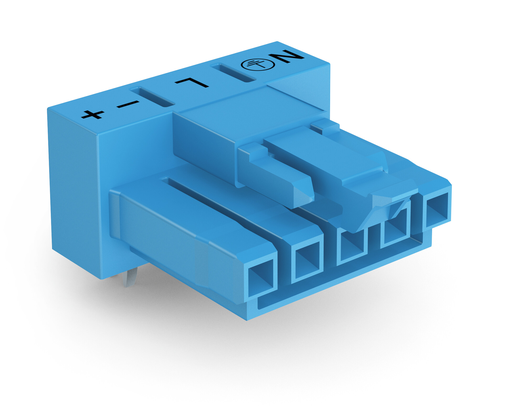

• Marking: N ⏚ L - +
• Potentialkennzeichnung: N ⏚ L - +
• Mating force of a plug-in connection: Approx. 20 … 70 N (depending on pole number)
• Retention force of a plug-in connection: Locked: > 80 N
• Unmating force of a plug-in connection: Unlocked: approx. 20 … 70 N (depending on pole number)
• Number of mating cycles: 200, without resistive load
• Design: Angled

Plug-In Connection

• Contact type (pluggable connector): Female connector/socket
• Connector (connection type): For PCB
• Mismating protection: Yes
• Note on mismating protection: All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole
• Mating direction to the PCB: 0 °
• Locking lever: Yes
• Locking of plug-in connection: Locking lever
• Hinweis zur Verriegelung: All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).

Pcb Contact

• PCB Contact: THT
• Solder pin arrangement: 2 in-line solder pins/pole
• Number of solder pins per potential: 2

Material Data

• Color: Blue
• Insulation material: Polyamide (PA66)
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Copper or copper alloy (surface-treated)
• Fire load: 0.000 MJ
• Weight: 5.260 g

Environmental Requirements

• Processing temperature: -5 … +40 °C
• Continuous operating temperature: -35 … +85 °C
• Note on continuous operating temperature: Insulating parts for temperatures ≤ 105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: PL
• GTIN: 4050821695929
• Customs tariff number Sales Organisation Germany: 85366990990
