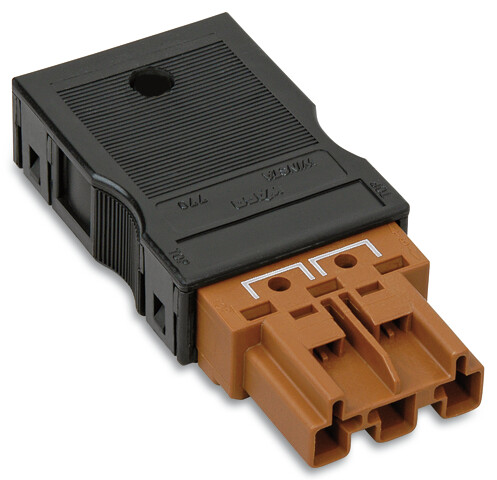

Features

• pre-assembled versions
• with S coding for AC applications of distributed components
• fast, secure installation

Approvals

• DEKRA Certification B.V., CCA, NL-32105, IEC 61535
• American Bureau of Shipping, ABS, 19-HG1868589-PDA
• Lloyds Register, LR, 02/20050 (E6), IEC 61984
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001Z6
• DEKRA Certification B.V., CCA, 2173495.02, EN 61535

Specifications

Ratings Per Iec/En

• Rated current: 25 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

• Rated voltage UL 1977: 600 V
• Rated current UL 1977: 23 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Pole No.: 3

Physical Data

• Pin spacing: 10 mm / 0.394 inch
• Width: 34.6 mm / 1.362 inch
• Height: 15 mm / 0.591 inch
• Depth: 76 mm / 2.992 inch

Mechanical Data

• Application: Switching function
• Coding: S
• Protection class: IP20; When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
• Suitable: For distribution connectors; series and two-way circuits

Plug-In Connection

• Contact type (pluggable connector): Male connector/plug
• Connector (connection type): For pluggable connector
• Locking lever: No
• Strain relief: Strain relief housing

Material Data

• Color: Brown
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Copper or copper alloy (surface-treated)
• Fire load: 7.045 MJ
• Connector color: Brown
• Weight: 27.843 g

Environmental Requirements

• Processing temperature: -5 … +40 °C
• Continuous operating temperature: -35 … +85 °C
• Note on continuous operating temperature: Insulating parts for temperatures ≤ 105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454148300
• Customs tariff number Sales Organisation Germany: 85366990990
