Features

• protection against mismating eliminates errors
• simple circuits
• for any mains application
• flexible installation to save space
• quick replacement of defective units during ongoing operation

Approvals

• DEKRA Certification B.V., CCA, NTR NL-7355, EN 61535
• DEKRA Certification B.V., KEMA/KEUR, 2179129.01, EN 61535

Specifications

Notes

• Note: Cables with a different fire class can be found in the eShop.

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 250 V
• Rated surge voltage (III/3): 4 kV
• Rated current: 16 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

• Hinweis für den amerikanischen Markt: Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office.

Connection 1

• Strip length: 9 mm / 0.35 inch
• Pole No.: 3
• Sheathed cable diameter: 7.4 … 9.4 mm
• Wire cross-section: 1.5 mm²
• Strip length (outer insulation): 55 mm

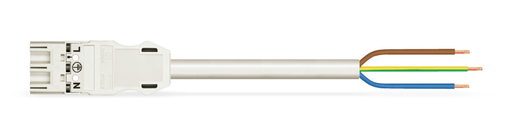

• Connection type: Plug - Free end

Physical Data

• Pin spacing: 10 mm / 0.394 inch
• Total length: 1 m

Mechanical Data

• Application: General mains applications
• Coding: A
• Marking: L ⏚ N
• Potentialkennzeichnung: L ⏚ N
• Mating force of a plug-in connection: Approx. 20 … 70 N (depending on pole number)
• Retention force of a plug-in connection: When locked: > 80N
• Unmating force of a plug-in connection: When unlocked: approx. 20 … 70 N (depending on pole number)
• Number of mating cycles: 200, without resistive load
• Connection type: Plug - Free end
• Type of pre-assembled cable: Connecting cable
• Cable type: H05VV-F 3G1.5
• Protection class: IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)

Plug-In Connection

• Mismating protection: Yes
• Note on mismating protection: All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole
• Locking lever: Can be retrofitted
• Locking of plug-in connection: Locking lever

Material Data

• Color: White
• Insulation material: Polyamide (PA66)
• Fire class per EN 50575: Eca
• Contact material: Copper or copper alloy (surface-treated)
• Fire load: 2.197 MJ
• Connector color: White
• Printing color of mating face: Black
• Strain relief color: White
• Printing color of strain relief: Black
• Sheathed cable color: White
• Printing color of sheathed cable: Black
• Halogen-free: No
• Sheath material: PVC
• Weight: 109.788 g
• Copper weight of the cable: 0.043 kg/m

Environmental Requirements

• Processing temperature: -5 … +40 °C
• Continuous operating temperature: -35 … +85 °C
• Note on continuous operating temperature: PVC cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C

Commercial Data

• Packaging type: Not packed
• Country of origin Sales Organisation Germany: DE
• GTIN: 4044918272834
• Customs tariff number Sales Organisation Germany: 85444290900
