Features

• effective protection against mismating
• compact design for conductors with a cross-section up to 1.5 mm²
• for any mains application
• ready for immediate use
• quick replacement of defective units during ongoing operation

Approvals

• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001Z6
• Underwriters Laboratories Inc., cURus, E45171, UL 1977
• American Bureau of Shipping, ABS, 19-HG1869855-PDA, Steel Vessel Rules
• DEKRA Certification B.V., CCA, 71-11299, EN 61535
• DEKRA Certification B.V., CCA, NL-64352, IEC 61535
• Lloyds Register, LR, 08/20047 (E2), EN 61535

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 400 V
• Rated surge voltage (III/3): 6 kV
• Rated current: 13 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

• Hinweis für den amerikanischen Markt: Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 5 A and voltages up to 600 V. For further information, please contact your local sales office.
• Rated voltage UL 1977: 600 V
• Rated current UL 1977: 12 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Operating tool || Push-in
• Nominal cross-section: 1.5 mm²
• Solid conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
• Solid conductor; push-in termination: 0.75 … 1.5 mm² / 20 … 16 AWG
• Stranded conductor: 0.25 … 1 mm² / 22 … 18 AWG
• Fine-stranded conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 0.75 mm² / 22 … 20 AWG
• Fine-stranded conductor; with uninsulated ferrule: 0.25 … 0.75 mm² / 22 … 20 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 0.75 mm² / 20 AWG
• Strip length: 9 mm / 0.35 inch
• Pole No.: 5
• Conductor entry direction to mating direction: 0 °

Physical Data

• Pin spacing: 4.4 mm / 0.173 inch
• Width: 23.6 mm / 0.929 inch
• Height: 11.7 mm / 0.461 inch
• Depth: 34.1 mm / 1.343 inch

Mechanical Data

• Application: General mains applications
• Coding: A

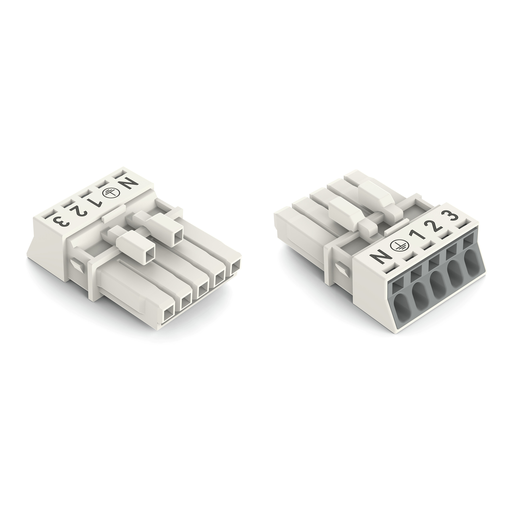

• Marking: N ⏚ 1 2 3
• Potentialkennzeichnung: N ⏚ 1 2 3
• Mating force of a plug-in connection: Approx. 20 … 70 N (depending on pole number)
• Retention force of a plug-in connection: Locked: > 80 N
• Unmating force of a plug-in connection: Unlocked: approx. 20 … 70 N (depending on pole number)
• Number of mating cycles: 200, without resistive load
• Protection class: IP20; IP40 with strain relief housing

Plug-In Connection

• Contact type (pluggable connector): Female connector/socket
• Connector (connection type): For conductor
• Mismating protection: Yes
• Note on mismating protection: All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole
• Locking lever: Can be retrofitted
• Locking of plug-in connection: Locking lever
• Hinweis zur Verriegelung: All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).

Material Data

• Color: White
• Insulation material: Polyamide (PA66)
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Copper or copper alloy (surface-treated)
• Fire load: 0.024 MJ
• Weight: 6.025 g

Environmental Requirements

• Processing temperature: -5 … +40 °C
• Continuous operating temperature: -35 … +85 °C
• Note on continuous operating temperature: Insulating parts for temperatures ≤ 105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454233204
• Customs tariff number Sales Organisation Germany: 85366990990
