Features

• pluggable installation connectors with protection against mismating
• consistent IP40 protection
• with A coding for use in a large number of general mains applications
• exact dimensions
• fast, secure installation

Approvals

• Underwriters Laboratories Inc., cURus, E45171, UL 1977
• Lloyds Register, LR, 08/20047 (E2), EN 61535
• DEKRA Certification B.V., CCA, NL-64352, IEC 61535
• American Bureau of Shipping, ABS, 19-HG1869855-PDA, Steel Vessel Rules
• DEKRA Certification B.V., CCA, 71-11299, EN 61535
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001Z6

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 250 V
• Rated surge voltage (III/3): 4 kV
• Rated current: 16 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

• Hinweis für den amerikanischen Markt: Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 5 A and voltages up to 600 V. For further information, please contact your local sales office.
• Rated voltage UL 1977: 600 V
• Rated current UL 1977: 14 A

Connection 1

• Pole No.: 3

Physical Data

• Pin spacing: 4.4 mm / 0.173 inch
• Width: 17.9 mm / 0.705 inch
• Height: 34 mm / 1.339 inch
• Depth: 53.9 mm / 2.122 inch

Mechanical Data

• Application: General mains applications
• Coding: A
• Marking: L ⏚ N
• Potentialkennzeichnung: L ⏚ N
• Mating force of a plug-in connection: Approx. 20 … 70 N (depending on pole number)
• Retention force of a plug-in connection: When locked: > 80 N
• Unmating force of a plug-in connection: Unlocked: approx. 20 … 70 N (depending on pole number)
• Number of mating cycles: 200, without resistive load

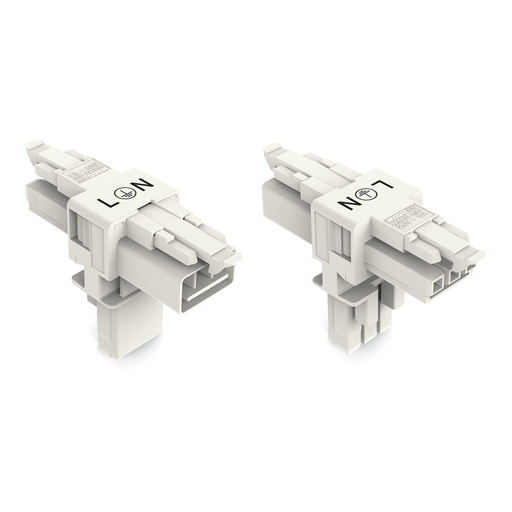

• Distributor type: T-distribution connector
• Protection class: IP20; IP40 when mated

Plug-In Connection

• Mismating protection: Yes
• Note on mismating protection: All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole
• Locking lever: Yes
• Locking of plug-in connection: Locking lever
• Hinweis zur Verriegelung: All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).
• Number of locking levers: 2

Material Data

• Color: White
• Insulation material: Polyamide (PA66)
• Contact material: Copper or copper alloy (surface-treated)
• Fire load: 0.024 MJ
• Weight: 7.919 g

Environmental Requirements

• Processing temperature: -5 … +40 °C
• Continuous operating temperature: -35 … +85 °C
• Note on continuous operating temperature: Insulating parts for temperatures ≤ 105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454490508
• Customs tariff number Sales Organisation Germany: 85366990990
