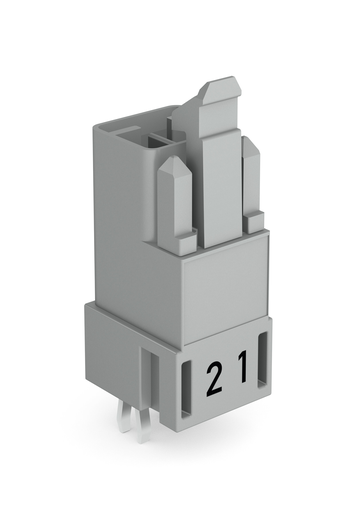

Features

• protection against mismating eliminates errors
• compact design for conductors with a cross-section up to 1.5 mm²
• for automation controllers
• quick replacement of defective units during ongoing operation

Approvals

• Lloyds Register, LR, 08/20047 (E2), EN 61535
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001Z6
• DEKRA Certification B.V., CB, 71-112993, EN 61984
• DEKRA Certification B.V., KEMA/KEUR, 2148952.04, EN 60320
• Underwriters Laboratories Inc., cURus, E45171, UL 1977
• DEKRA Certification B.V., CB, NL-64351, IEC 61984

Specifications

Notes

• Variants:: Other pole markings || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 250 V
• Rated surge voltage (III/3): 4 kV
• Rated current: 16 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

• Hinweis für den amerikanischen Markt: Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 5 A and voltages up to 600 V. For further information, please contact your local sales office.
• Rated voltage UL 1977: 600 V
• Rated current UL 1977: 14 A

Connection 1

• Pole No.: 2

Physical Data

• Pin spacing: 4.4 mm / 0.173 inch
• Width: 10.4 mm / 0.41 inch
• Height: 31.9 mm / 1.256 inch
• Height from the surface: 28.4 mm / 1.118 inch
• Depth: 12.2 mm / 0.48 inch
• Solder pin length: 3.5 mm
• Solder pin dimensions: 1 x 0.8 mm
• Drilled hole diameter with tolerance: 1.3 (+0.1) mm

Mechanical Data

• Application: Measurement and regulation technology
• Coding: B
• Marking: 1 2
• Potentialkennzeichnung: 1 2
• Mating force of a plug-in connection: Approx. 20 … 70 N (depending on pole number)
• Retention force of a plug-in connection: Locked: > 80 N
• Unmating force of a plug-in connection: Unlocked: approx. 20 … 70 N (depending on pole number)
• Number of mating cycles: 200, without resistive load100, with resistive load IN = 16 A, tested (1.5 mm²/16 AWG)
• Design: Straight

Plug-In Connection

• Contact type (pluggable connector): Male connector/plug
• Connector (connection type): For PCB
• Mismating protection: Yes
• Note on mismating protection: All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole
• Mating direction to the PCB: 90 °
• Locking lever: Yes
• Locking of plug-in connection: Locking lever
• Hinweis zur Verriegelung: All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).

Pcb Contact

• PCB Contact: THT
• Solder pin arrangement: 2 in-line solder pins/pole
• Number of solder pins per potential: 2

Material Data

• Color: Gray
• Insulation material: Polyamide (PA66)
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Copper or copper alloy (surface-treated)
• Fire load: 0.051 MJ
• Weight: 2.362 g

Environmental Requirements

• Processing temperature: -5 … +40 °C
• Continuous operating temperature: -35 … +85 °C
• Note on continuous operating temperature: Insulating parts for temperatures ≤ 105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: PL
• GTIN: 4050821695837
• Customs tariff number Sales Organisation Germany: 85366990990
