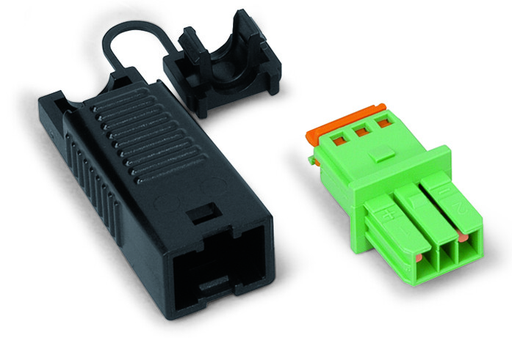

Features

• saves time, since no wiring is required at the construction site
• for emergency power supply
• custom-engineered solutions
• fast, secure installation

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 50 V
• Rated surge voltage (III/3): 0.8 kV
• Rated current: 3 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

• Connection technology: PUSH WIRE®
• Actuation type: Push-in
• Conductor diameter: 0.8 mm
• Strip length: 9 mm / 0.35 inch
• Pole No.: 2
• Connectable sheathed cable diameter: 5 … 7 mm
• Conductor entry direction to mating direction: 0 °

Physical Data

• Width: 14.1 mm / 0.555 inch
• Depth: 47.5 mm / 1.87 inch

Mechanical Data

• technology: KNX
• Coding: E
• Marking: 1+ 2-
• Potentialkennzeichnung: 1+ 2-
• Mating force of a plug-in connection: Approx. 10 … 15 N
• Retention force of a plug-in connection: Locked: > 80 N
• Unmating force of a plug-in connection: Unlocked: approx. 15 … 20 N
• Number of mating cycles: 200
• Protection class: IP20; Only when mated and secured with a strain relief housing (These compact connectors are not designed for use in open, easily accessible areas.)

Plug-In Connection

• Contact type (pluggable connector): Female connector/socket
• Connector (connection type): For conductor
• Mismating protection: Yes
• Note on mismating protection: All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole
• Locking lever: Can be retrofitted
• Locking of plug-in connection: Locking lever
• Hinweis zur Verriegelung: All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).
• Strain relief: Strain relief housing

Material Data

• Color: Green
• Insulation material: Polyamide (PA66)
• Fire class per EN 50575: Eca
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Copper alloy (surface-treated)
• Fire load: 0.150 MJ
• Weight: 5.000 g

Environmental Requirements

• Processing temperature: -5 … +40 °C
• Continuous operating temperature: -35 … +85 °C
• Note on continuous operating temperature: Insulating parts for temperatures ≤ 105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CH
• GTIN: 4045454267469
• Customs tariff number Sales Organisation Germany: 85366990990
