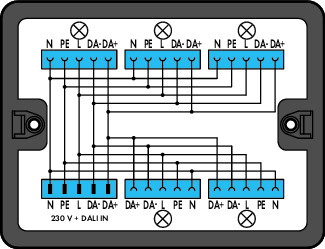

Features

• protection against mismating eliminates errors
• clear slot identification for easy commissioning
• cost savings – reduction of on-site waste
• with I coding for use in building automation (lighting control)
• convenient installation and commissioning

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 250 V
• Rated surge voltage (III/3): 4 kV
• Rated current: 25 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Physical Data

• Width: 190 mm / 7.48 inch
• Height: 30 mm / 1.181 inch
• Depth: 145 mm / 5.709 inch

Mechanical Data

• Internal wiring: 2.5 mm²
• Application: DALI, Lighting Management
• Coding: I
• Mounting type: Wall, screw mount || Installation on mounting plate
• Protection class: IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)

Plug-In Connection

• Mismating protection: Yes
• Note on mismating protection: All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole
• Locking of plug-in connection: Locking lever

Material Data

• Color: Black
• Insulation material: Polyamide (PA66)
• Contact material: Copper or copper alloy (surface-treated)
• Fire load: 37.296 MJ
• Weight: 424.541 g

Environmental Requirements

• Processing temperature: -5 … +40 °C
• Continuous operating temperature: -35 … +85 °C
• Note on continuous operating temperature: Insulating parts for temperatures ≤ 105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143271721
• Customs tariff number Sales Organisation Germany: 85366990990
