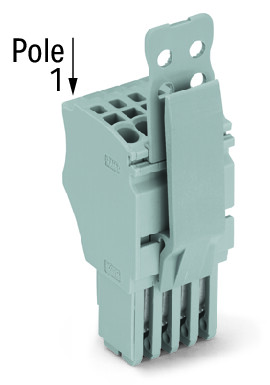

Features

Approvals

• DEKRA Certification B.V., CCA, NTR NL 7617, EN 60947
• UL International Germany GmbH, UL, E45172, UL 1059

Specifications

Notes

• Safety information 1: According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.
• Safety information 2: Notice: An appropriate end plate must be applied to the carrier terminal blocks after each female plug.

Ratings Per Iec/En

• Ratings per: IEC/EN 61984
• Nominal voltage (III/3): 500 V
• Rated surge voltage (III/3): 6 kV
• Rated current: 13.5 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 15 A
• Rated voltage UL (Use Group C): 300 V
• Rated current UL (Use Group C): 15 A
• Rated voltage UL (Use Group D): 300 V
• Rated current UL (Use Group D): 15 A

Ratings Per Csa

• Approvals per: C22.2 No 158
• Rated voltage CSA (Use Group B): 300 V
• Rated current CSA (Use Group B): 10 A
• Rated voltage CSA (Use Group C): 300 V
• Rated current CSA (Use Group C): 10 A
• Rated voltage CSA (Use Group D): 300 V
• Rated current CSA (Use Group D): 10 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Operating tool || Push-in
• Connectable conductor materials: Copper
• Nominal cross-section: 1 mm²
• Solid conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
• Solid conductor; push-in termination: 0.5 … 1.5 mm² / 20 … 16 AWG
• Fine-stranded conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
• Fine-stranded conductor; with insulated ferrule: 0.14 … 0.75 mm² / 24 … 18 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 0.5 … 0.75 mm² / 20 … 18 AWG
• Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Strip length: 9 … 11 mm / 0.35 … 0.43 inch
• Pole No.: 4
• Wiring direction: Front-entry wiring

Physical Data

• Width: 14.7 mm / 0.579 inch
• Height: 59 mm / 2.323 inch
• Depth: 27.2 mm / 1.071 inch
• Module width: 3.5 mm / 0.138 inch

Mechanical Data

• Marking level: Side marking

Plug-In Connection

• Contact type (pluggable connector): Female connector/socket
• Connector (connection type): For conductor

Material Data

• Color: Gray
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.201 MJ
• Weight: 10.425 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821092551
• Customs tariff number Sales Organisation Germany: 85366990990
