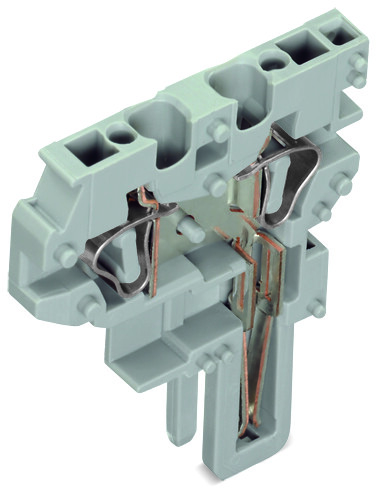

Features

• One base module with an integrated end plate
• Up to 13 center modules (corresponding to a 15-pole female plug = maximum pole number)
• One end module

Approvals

• Underwriters Laboratories Inc., UR, E45172, UL 1059
• Underwriters Laboratories Inc., UR, E45171, UL 1977
• DEKRA Certification B.V., CCA, NTR NL-7626, EN 60947
• DEKRA Certification B.V., CSA, 1101144, C22.2 No. 158
• DEKRA Certification B.V., CCA, NL-47799/A1, EN 61984
• DEKRA Certification B.V., CCA, 2190419.02, EN 61984
• DEKRA Certification B.V., KEMA/KEUR, 2190419.01, EN 60947

Specifications

Notes

• Safety information 1: According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.

Ratings Per Iec/En

• Ratings per: IEC/EN 61984
• Nominal voltage (III/3): 500 V
• Rated surge voltage (III/3): 6 kV
• Rated current: 32 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Operating tool
• Connectable conductor materials: Copper
• Nominal cross-section: 4 mm²
• Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Pole No.: 1
• Wiring direction: Front-entry wiring

Physical Data

• Width: 5 mm / 0.197 inch
• Height: 45.2 mm / 1.78 inch
• Depth: 35.9 mm / 1.413 inch
• Module width: 5 mm / 0.197 inch

Mechanical Data

• Marking level: Side marking

Plug-In Connection

• Contact type (pluggable connector): Female connector/socket
• Connector (connection type): For conductor

Material Data

• Color: Gray
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.069 MJ
• Weight: 4.810 g

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: PL
• GTIN: 4017332331463
• Customs tariff number Sales Organisation Germany: 85366990990
