WAGO PCB Terminal Blocks and WAGO Connectors

WAGO PCB Terminal Blocks and WAGO Connectors Benefits

WAGO's PCB terminal blocks and pluggable connectors have several key benefits for the end-user, including:

• A highly diverse variety of pluggable PCB terminal blocks and connectors that covers the needs of most industries.
• The PCB terminal blocks and pluggable connectors are very straightforward and safe to use.
• Thanks to WAGO's proprietary spring-pressure technology that ensures permanent and secure conductor termination.
• The use of CAGE CLAMP® and PUSH-WIRE® technologies ensures quick termination of solid and ferruled conductors.
• The availability of THT PCB Terminal Blocks and THR/SMD PCB Terminal Blocks ensures seamless integration in any manufacturing process.
• Cost- and -space-effective compact terminal blocks for large cross-sections and high currents.
• A horizontal and vertical arrangement of conductors possible.
• The pluggable connectors can be tested both parallel and perpendicular to the conductor's entry.

On-Line Electronics program of WAGO PCB Terminal Blocks and WAGO Connectors is the most extensive on offer and with very competitive prices.

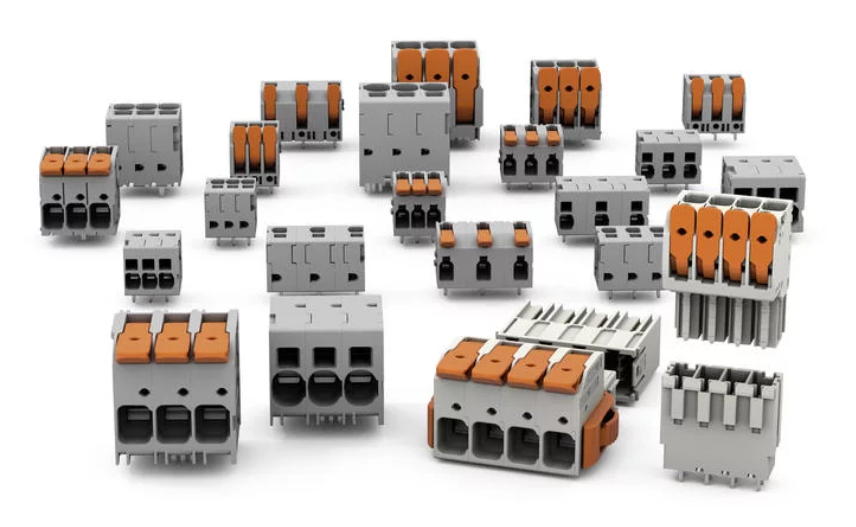

WAGO PCB Terminal Blocks

On-Line Electronics provides the full lineup of WAGO PCB Terminal Blocks with Push-In CAGE CLAMP®, CAGE CLAMP®, Power CAGE CLAMP®, and PUSH-WIRE® connection technologies. All of these technologies ensure a secure, fast, and straightforward connection process.

The PCB terminal blocks can be used to terminate the following copper wire conductors:

• Push-In CAGE CLAMP® and CAGE CLAMP® (no tools required) – solid, stranded, fine-stranded, fine-stranded with tinned single strands, fine-stranded and tip-bonded, fine-stranded with a ferrule, and fine-stranded with pin terminal.
• Power CAGE CLAMP® - solid, stranded, fine-stranded, fine-stranded with tinned single strands, fine-stranded with ferrule.
• PUSH-WIRE® - solid copper conductors.

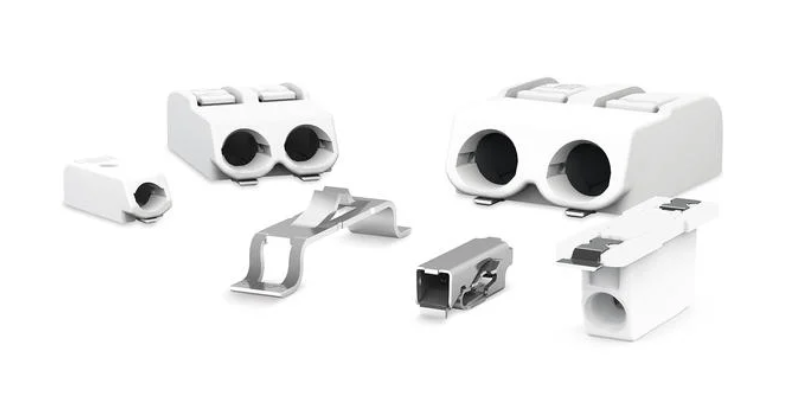

THR/SMD PCB Terminal Blocks

On-Line Electronics provides the full lineup of WAGO THR PCB Terminal Blocks and SMD PCB Terminal Blocks.

The THR PCB terminal blocks are available with push-button actuation (Push-In CAGE CLAMP®), confirmation slide switch (CAGE CLAMP®), and operating tool actuation (CAGE CLAMP®). You can also acquire the full program of test plug modules and operating tools for THT PCB terminal blocks through On-Line Electronics.

These products are manufactured using the THR (Through-Hole Reflow) soldering process, and are made from a high-temperature-resistant plastic and streamlined pin design. Moreover, the terminal strips are equipped with an additional suction pad in tape-and-reel packaging. As a result of that, THR/SMD PCB Terminal Blocks ensure a perfect electrical and mechanical connection and meet the requirements for SMT process capability.

The SMD PCB terminal blocks are available with push-button actuation (PUSH-WIRE® and Push-In CAGE CLAMP®), and operating tool actuation (Push-In CAGE CLAMP®). You can also acquire board-to-board links and operating tools for SMD PCB terminal blocks through On-Line Electronics.

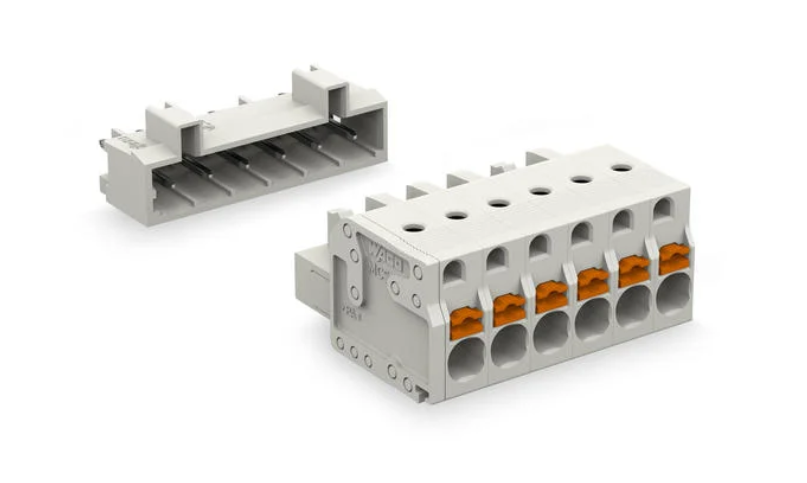

MULTI CONNECTION SYSTEM (MCS)

On-Line Electronics offers the full lineup of WAGO MULTI CONNECTION SYSTEM (MCS) MICRO and MINI Series.

The MCS Micro Series is only available with operating tool activation (CAGE CLAMP®) technology. On-Line Electronics can provide female conductor connectors, conductor male connectors, THT female headers, and THT, and THR male headers. The full lineup of accessories is also available, including operating tools, coding keys, and strain relief plates.

The MCS Mini-Series is available with operating tool activation (CAGE CLAMP®) and push-button actuation (CAGE CLAMP®). On-Line Electronics can provide female conductor connectors, conductor male connectors, THT female headers, and THT, and THR male headers. We can also provide operating tools, insulation stop, finger guards, coding keys, strain relief plates, and strain relief housing.

Pluggable PCB Terminal Blocks

On-Line Electronics offers an extensive lineup of pluggable PCB terminal blocks with various conductor entry directions and actuation types. All pluggable terminal blocks ensure a vibration-proof and maintenance-free spring pressure connection technology. The terminal blocks are also available for individual solder pins and solder pin strips.

Feedthrough Terminal Blocks

Our extensive lineup of feedthrough terminal blocks can be used both for external and internal conductor connections. These products don't require any tools for assembly, thanks to the locking and retaining clips. For time-saving actuation, several clamping units from the 828 Series can be actuated at the same time using one lever.

Specialty Connectors

Our extensive lineup of WAGO specialty connectors includes:

• CAGE CLAMP® connectors for solid, stranded, and fine-stranded conductors.
• FIT CLAMP® connectors for unstripped and fine-stranded conductors.
• PUSH-WIRE® connectors for tool-free and twist-free terminations for solid and rigid stranded conductors.

We can also provide the full lineup of accessories associated with WAGO specialty connectors.

Empty Housings

On-Line Electronics offers the most extensive lineup of WAGO Empty Housings for use with WAGO Terminal Blocks and WAGO Connectors.
